CNC Grinding Services
Think regular machining is precise? CNC grinding takes accuracy to a whole new level, removing material with computer-controlled abrasive tools to achieve tolerances that would make a human operator’s head spin. Our grinding operations deliver dimensional accuracy down to ±0.00007 inches with surface finishes from mirror-smooth 0.025 μm to 3.2 μm Ra. Whether you need cylindrical grinding for shafts, surface grinding for perfect flatness, centerless grinding for high-volume production, or specialty precision grinding for complex parts, we’ve got you covered. These aren’t just numbers on paper — they’re the difference between parts that almost fit and components that perform flawlessly in aerospace systems, medical devices, automotive applications, and other precision manufacturing where “close enough” simply isn’t an option.
- ⬤Dienst
- ⬤Deine Details
- ⬤Einreichen

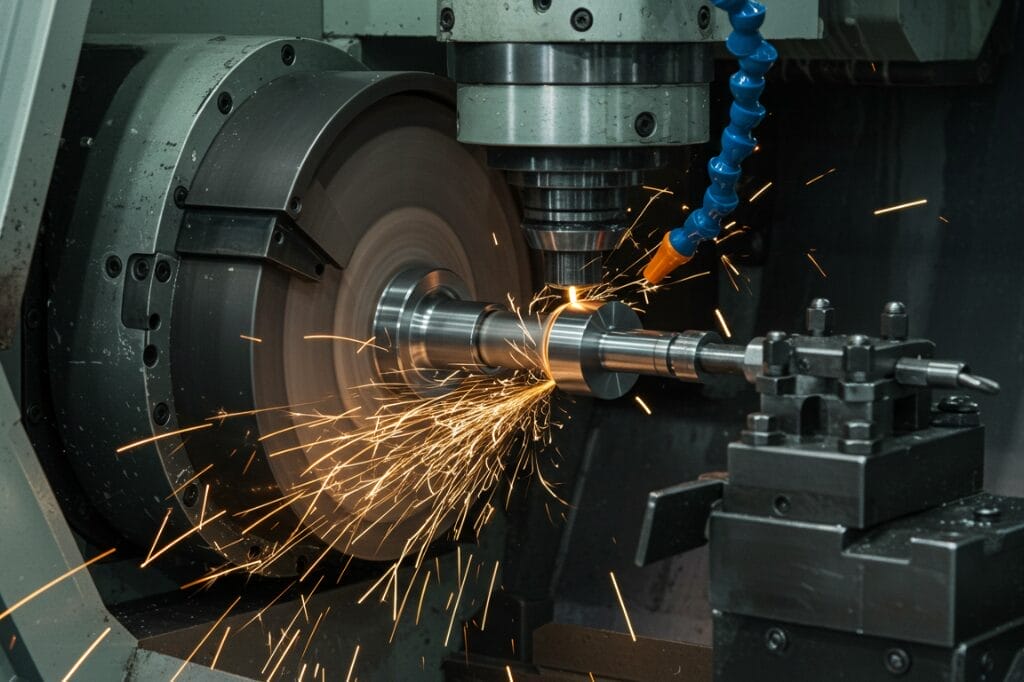

What is CNC Grinding
Think of CNC grinding as the perfectionist’s approach to machining — it uses computer-guided rotating wheels that act like super-precise sandpaper to remove material exactly where needed. The difference shows up in those microscopic measurements that matter tremendously in high-performance applications — we’re talking roundness within ±0.0002″ (about 1/5 the thickness of a human hair) and cylindricity within ±0.005 mm even on materials so hard they score up to HRA 94.5 on the Rockwell scale. Regular machining methods simply can’t touch this level of precision or surface quality — it’s like comparing a smartphone camera to a professional studio setup. When parts need to fit together perfectly or surfaces need to be virtually friction-free, CNC grinding isn’t just nice to have — it’s absolutely essential.
Grinding Process Advantages
The real magic of grinding happens at a microscopic level, each removing just a fraction of material with every pass. We match wheels to materials: CBN (Cubic Boron Nitride) wheels for those super-hardened steels, diamond abrasives for the nearly-impossible-to-machine carbides and ceramics, and traditional silicon carbide or aluminum oxide wheels for softer materials like aluminum and cast iron.
Key Process Benefits:
- Grinding achieves tolerances that make regular milling look crude — around 10–50 times more precise
- Unlike other processes, grinding works perfectly on materials AFTER heat treatment, when they’re at their hardest
- Creates those mirror-smooth finishes crucial for optical applications and precision sealing surfaces
- Our controlled cutting conditions eliminate the thermal damage that ruins parts in less sophisticated operations
Our CNC Grinding Services
We offer precision CNC grinding services including cylindrical OD/ID grinding, centerless grinding, surface grinding, and specialized profile grinding. Our grinding capabilities span workpieces from 0.1 mm electrode diameter grinding to 40 inches diameter cylindrical components. Emergency grinding machine services deliver critical parts within 24–48 hours when production runs demand rapid turnaround.
Cylindrical Grinding Capabilities
Internal diameter grinding handles bores from 2 mm to 35 inches diameter with honing capabilities for crosshatch surface patterns. External diameter cylindrical grinding processes shafts and cylindrical components with length-to-diameter ratios up to 20:1. Our cylindrical grinder operations include thread grinding, creating precision threads with lead accuracy within ±0.0005″ per inch.
Surface and Centerless Grinding Solutions
CNC surface grinding services achieve flatness and parallelism within ±0.0125 mm across widths up to 72 inches using magnetic fixture workholding. Centerless grinding eliminates workholding marks while maintaining roundness tolerances to ±0.0002″ for high-volume production applications. The regulating wheel controls workpiece feed rates while the grinding wheel rotates at optimal speeds.
| Grinding Service | Größenbereich | Toleranz | Oberflächenbehandlung |
|---|---|---|---|
| Cylindrical OD | 0.2 mm — 40″ dia | ±0.00007″ | 0.025-3.2 μm Ra |
| Cylindrical ID | 2 mm — 35″ dia | ±0.0002″ | 0.08-1.6 μm Ra |
| Centerless | 0.004″ — 8″ dia | ±0.0002″ | 0.08-0.8 μm Ra |
| Flachschleifen | Up to 72″ width | ±0.0125 mm | 0.025-2.0 μm Ra |
Which Materials Can We Grind Effectively?
We process carbon steel, rostfreier Stahl grades 316L and 17-4 PH, Aluminium alloys 6061-T6 and 7075-T6, and Titan alloys Ti-6Al-4V through various grinding techniques. Exotic metals and alloys including Inconel 718, Hastelloy X, Waspaloy, and carbide tooling materials complete our processing capabilities. Engineering plastics like PEEK and ceramics including alumina and silicon nitride require precision grinding parameters for optimal results.
Material-Specific Grinding Parameters
Different materials require specific grinding wheel selections and machine parameters. Stainless steels benefit from CBN wheels to prevent work hardening, while carbides demand diamond abrasives for effective stock removal. Our grinder setups include specialized coolant selection from water-based fluids for steels to synthetic coolants for titanium processing.
Advanced Surface Treatments
Secondary Finishing Options:
- Eloxieren: Types I, II, and III hard anodizing for aluminum components
- Plating: TiN, TiCN, TiAlN coatings withstand temperatures to 500 °C
- DLC Coating: Diamond-like carbon for extreme precision applications
- Chrome Plating: Decorative and functional chromium deposits
- Schwarzes Oxid: Corrosion protection with minimal dimensional change
How do We Ensure Quality in CNC Grinding Operations?
Our quality management systems maintain ISO 9001:2015, AS9100 aerospace, and ISO 13485 medical device certifications across industries including automotive and semiconductor manufacturing. CMM inspection using Zeiss coordinate measuring machines verifies dimensions within ±0.0001″ accuracy. Surface quality measurement employs Mitutoyo profilometers calibrated to NIST standards with Ra accuracy to 0.001 μm.
Environmental Controls and Equipment
Temperature-controlled grinding environments maintain ±1 °C stability, preventing thermal expansion errors during precision operations. CNC machines from Okamoto, Kellenberger, Studer, and Haas provide spindle speeds to 60,000 RPM with programmable wheel dressing cycles. High-speed coolant systems filter contaminants to 5 microns while maintaining constant temperature and pressure delivery.
Documentation and Compliance
Quality Assurance Capabilities:
- First Article Inspection with full dimensional reporting
- PPAP documentation for automotive customers with Cpk > 1.33
- Material certifications traceable to mill test certificates
- Statistical Process Control with real-time capability monitoring
- NADCAP certification for aerospace grinding operations
- Made in the USA quality standards compliance
What Industries Benefit from Our CNC Grinding Expertise?
Luft- und Raumfahrt applications include turbine blade root forms, landing gear components, and hydraulic actuator parts requiring NADCAP certified processes. Medical device manufacturing demands FDA registered facilities for surgical instruments, orthopedic implants, and Class III medical devices. Automobilindustrie components include transmission shafts, fuel injection components, and valve train parts meeting fit and function requirements.
Branchenspezifische Anwendungen
Aerospace Tool Manufacturing:
- Gas turbine engine components with complex geometries
- Landing gear bushings requiring fatigue resistance
- Hydraulic system components with precise sealing surfaces
Medical Device Parts:
- Surgical instruments with biocompatible Oberflächenveredelungen
- Orthopedic implants requiring osseointegration surfaces
- Precision measurement tools for diagnostic equipment
Wide Range of Industries:
- Bearing races for high-speed spindles in semiconductor equipment
- Linear guide components for precision machine tools
- Custom tooling for manufacturing operations requiring extreme precision
What Advanced Grinding Techniques Do We Employ?
Continuous dress creep feed grinding removes substantial material in single passes using open-structure grinding wheels with robust coolant delivery systems. Multi-axis operations synchronize workpiece rotation with grinding head movement for complex contours, including turbine blade profiles. Jig grinding provides precise hole location accuracy within ±0.0002″ for complex fixtures and tooling applications.
Specialized Grinding Methods
Form grinding creates complex profiles using diamond-dressed wheels programmed from DXF files on rotary table setups. Electrochemical grinding combines electrical discharge with mechanical abrasion for difficult-to-grind superalloys. Thread grinding produces precision threads including Acme, buttress, and metric forms with lead accuracy superior to conventional threading.
Advanced Grinding Capabilities:
- Five-axis grinding with B-axis and C-axis interpolation
- Optical profile grinding for lens and prism components
- Tool and cutter grinding for manufacturing cutting tools
- Blanchard grinding for large flat surfaces requiring uniform thickness
- Lapping machines for ultra-smooth finishes on precision components
Why Choose Yijin Hardware for CNC Grinding Services?
We combine 20+ years precision grinding expertise with temperature-controlled facilities operating 24/7 production schedules. Our engineering team provides design for manufacturability consultation, optimizing components for grinding operations while minimizing costs. Quality certifications include ISO 9001:2015, AS9100, ISO 13485, and ITAR registration supporting defense applications across various industries.
Emergency machining services deliver critical components within 24–48 hours, supported by comprehensive inventory management. Our facility maintains backup power systems and redundant equipment, ensuring continuity for time-critical grinding jobs across aerospace, medical, and automotive sectors requiring precision grinding solutions.
Was unsere Kunden sagen
CNC Grinding Services FAQs
CNC grinding achieves dimensional accuracies within ±0.00007″ (±0.002 mm) for cylindrical operations, with roundness and cylindricity tolerances to ±0.0002″. This type of grinding maintains flatness within ±0.0125 mm across large surface areas using precision grinding machine technology. These accuracy levels exceed conventional machining by factors of 10–50 times, making grinding essential for components where dimensional precision directly impacts performance.
Material removal rates operate significantly slower than conventional machining, typically removing 0.001″-0.010″ per pass compared to milling operations removing 0.100″ or more. Grinding wheel wear necessitates frequent wheel changes and redressing operations, creating production interruptions. Higher processing costs result from slower stock removal rates and consumable grinding wheel expenses compared to conventional cutting tools requiring replacement less frequently.
Grinding techniques include traverse cylindrical grinding using longitudinal wheel movement, plunge grinding for shoulders and complex geometries, and centerless operations for high-volume round parts. Surface grinding employs reciprocate table movement with downfeed wheel positioning for flatness control. Specialized methods encompass in-feed creep grinding for substantial stock removal, thread grinding for precision fasteners, and form grinding creating complex profiles through programmed wheel dressing operations on rotating abrasive wheels.
