CNC Drilling Service
Our CNC drilling service doesn’t just punch holes — it creates precisely positioned openings with tolerances that would make a watchmaker jealous. We’re talking accuracy down to ±0.001 inches across materials that other shops avoid — from aircraft-grade Aluminium und rostfreier Stahl zu Titan and those tricky advanced composites. Our ISO 9001:2015 certification isn’t just a piece of paper on the wall — it’s your guarantee that every hole meets those exacting standards your project demands.
Where we really shine is handling the tough stuff — those deep holes extending up to 150 mm that would cause other shops to break out in a cold sweat. Using specialized techniques like gun drilling and BTA methodologies, we deliver results for industries where failure simply isn’t an option — aerospace components that absolutely cannot fail at 30,000 feet, medical devices that patients’ lives depend on, critical automotive systems, and electronics where microscopic precision makes the difference between success and failure. When a misplaced hole by even a few thousandths of an inch would mean disaster, that’s precisely when our multi-axis capabilities prove their worth.
- ⬤Dienst
- ⬤Deine Details
- ⬤Einreichen

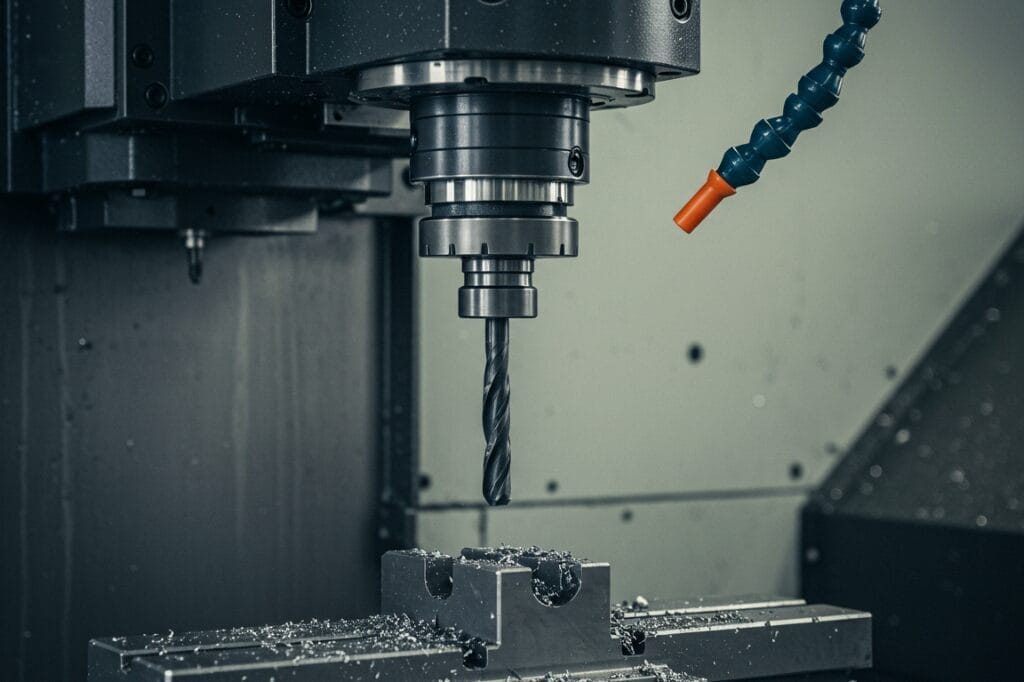

How We Achieve Precision
Think of CNC drilling as a robot with superhuman patience and precision. The whole system works by combining automated positioning with real-time monitoring that catches issues human operators might miss. Our machines follow G-code instructions – basically digital recipes that control everything from how fast the drill bit spins to when coolant gets sprayed and how quickly the drill moves into the material. Behind the scenes, sophisticated CAD software plots out the perfect path for each hole, shaving seconds off cycle times while still hitting those crazy-tight specs your project demands.
Smart Factory Features
- Tiny IoT sensors constantly monitor vibration, temperature, and cutting forces – catching problems before they ruin parts
- Smart algorithms actually predict when tools are about to fail, eliminating those costly mid-job breakages
- Digital twin technology lets us run simulations before cutting actual material, working out bugs virtually
- Our cloud-based dashboards track everything happening on the shop floor across multiple machines
The system automatically picks the perfect tool for each job from libraries containing everything from standard twist drills to specialized micro drills smaller than a human hair. For those challenging deep holes, our high-pressure coolant systems blast cutting fluid at up to 3000 PSI – that’s stronger than many pressure washers – keeping chips flowing out and temperatures under control even during the toughest operations.

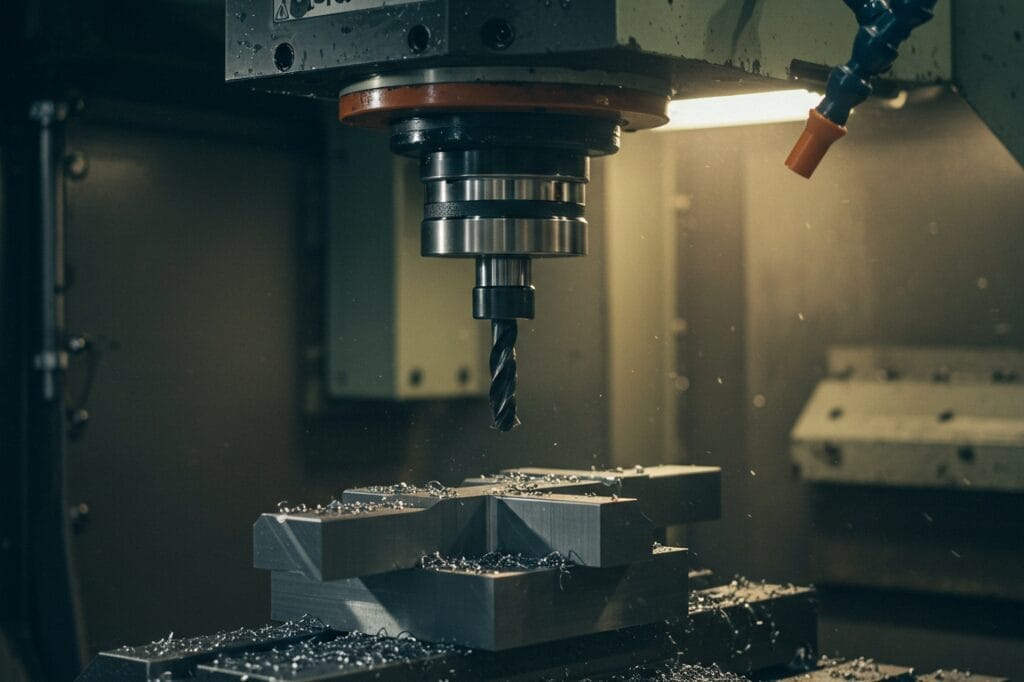

What CNC Drilling Services do We Offer?
We provide comprehensive drill services including standard round holes, blind holes, angled drilling, countersinking, counterboring, and deep hole drilling applications. Our 3-axis, 4-axis, and 5-axis CNC mill drill centers achieve positioning tolerances of ±0.001 inches with repeatability of ±0.0002 inches. Hole diameter capabilities range from micro-drilling at 0.1 mm precision up to large diameter operations reaching 80 mm.
Specialized Drilling Capabilities
| Art der Dienstleistung | Toleranz | Max Depth | Tool Technology |
|---|---|---|---|
| Micro Drilling | ±0.0002 inches | 10 mm | Carbide micro drills |
| Standard Drilling | ±0,001 Zoll | 50 mm | HSS/Carbide twist drills |
| Deep Hole Drilling | ±0,002 Zoll | 300 mm | Gun drills, BTA tools |
| Multi-axis Drilling | ±0,0005 Zoll | 150 mm | Indexable insert drills |
Advanced Process Features
- Vibration compensation algorithms maintain hole straightness
- Adaptive feed control adjusts parameters based on cutting conditions
- Automatic tool wear detection prevents dimensional drift
- Swiss machining enables simultaneous CNC turning operations

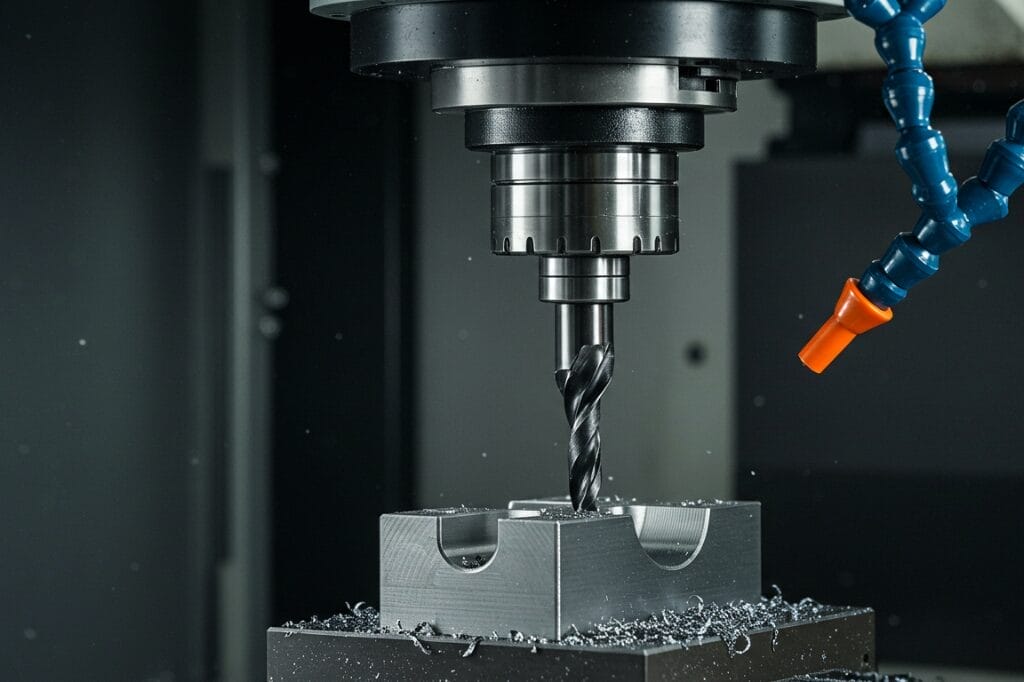

Why Choose Our Deep Hole Drilling Expertise?
Deep hole drilling at Yijin Hardware employs gun drilling and BTA drilling methodologies for depth-to-diameter ratios exceeding 10:1. Gun drilling utilizes single-lip cutting tools with internal coolant channels to maintain straightness tolerances within ±0.002 inches over extended depths. BTA systems provide faster material removal using larger diameter tools with external chip evacuation for small and large production runs.
Technische Daten
- Gun drilling capabilities: 2 mm to 50 mm diameter, up to 300 mm depth
- BTA drilling range: 20 mm to 100 mm diameter, depths exceeding 500 mm
- Straightness tolerance: 0.05 mm per 100 mm of depth
- Oberflächengüte: Ra 1.6 μm achievable with optimized parameters
Our high-pressure coolant delivery systems maintain cutting temperatures below critical thresholds while ensuring complete chip removal from deep bores. This precision CNC approach eliminates deflection during drilling operations on extended workpiece lengths.

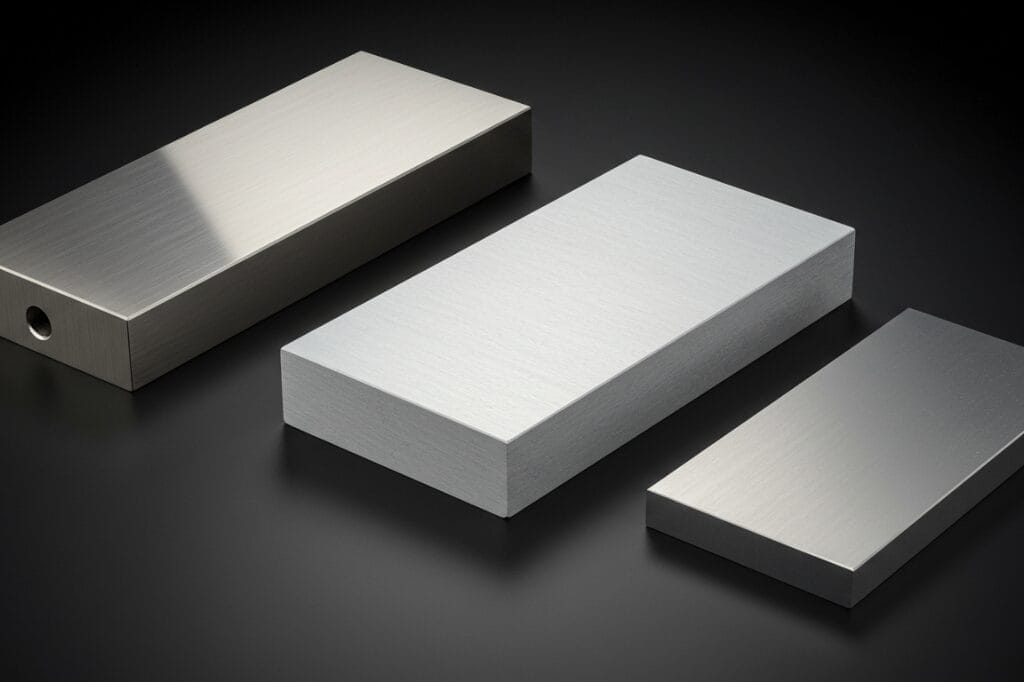

Which Materials Can We Machine Precisely?
We machine Luft- und Raumfahrt und Automobil alloys including Inconel 718, Hastelloy X, titanium Ti-6Al-4V, and aluminum 7075-T6 using optimized cutting parameters and specialized tool coatings. Medizinische-grade materials such as 316L stainless steel, cobalt chrome, PEEK, and biocompatible titanium receive high precision drilling with surface finishes meeting FDA requirements for implantable devices.
Materialspezifisches Fachwissen
| Material-Kategorie | Common Grades | Cutting Challenges | Our Solutions |
|---|---|---|---|
| Aluminium-Legierungen | 6061-T6, 2024-T3 | Burr formation, chip welding | TiAlN coated drills, optimized speeds |
| Rostfreier Stahl | 316L, 17-4 PH, 15-5 PH | Work hardening, galling | Cobalt HSS tools, controlled feeds |
| Titan-Legierungen | Ti-6Al-4V, CP Grade 2 | Heat generation, chemical reactivity | Flood coolant, ceramic tools |
| Superlegierungen | Inconel 625, Waspaloy | Rapid tool wear, work hardening | Advanced carbides, rigid setups |
Composite Material Capabilities
- Carbon steel and carbon fiber reinforced plastics with diamond-coated drills
- Glass fiber composites using compression cutting techniques
- Polycarbonate and materials like plastics requiring specialized parameters
- Ceramic matrix composites requiring diamond tooling

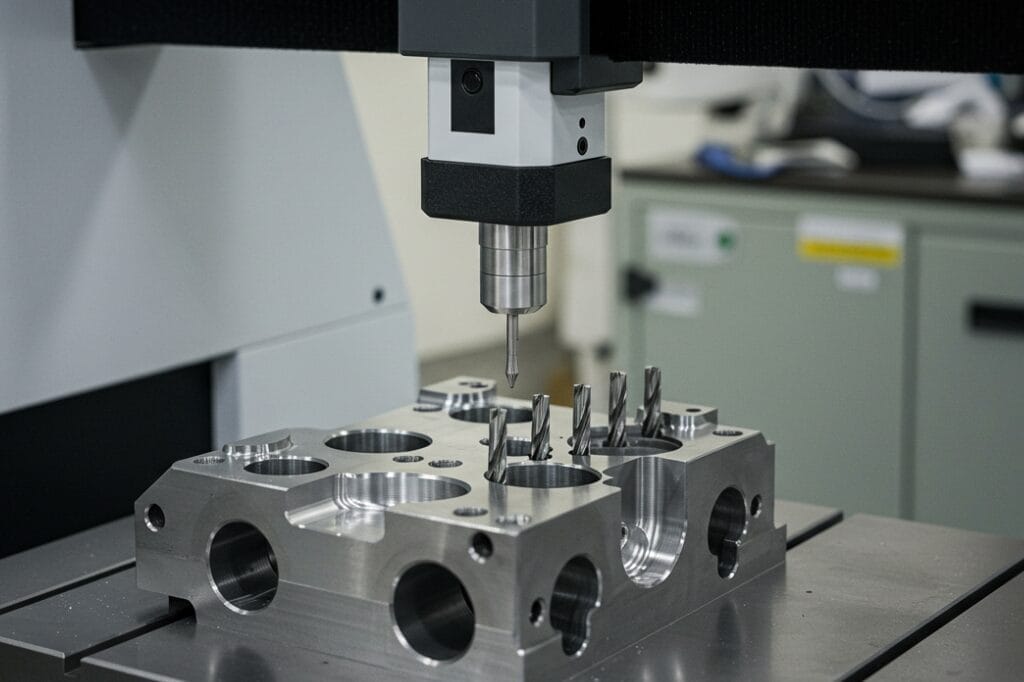

How do We Guarantee Quality Results?
Quality assurance follows AS9100D protocols with statistical process control and comprehensive inspection procedures. Coordinate measuring machines verify hole position accuracy, diameter tolerance, and cylindricity within specified limits. Our state-of-the-art Hexagon CMM systems provide measurement resolution to 0.0001 inches with automated probe changing for complex geometries.
Inspektionstechnologien
- Optical measurement systems for micro-hole verification
- Surface roughness testing using contact and non-contact profilometers
- Pneumatic gauging for high-speed diameter verification
- Vision systems for automated hole placement measurement
Quality Documentation
- First Article Inspection Reports with full dimensional verification
- Material certificates and heat treatment documentation
- Process capability studies demonstrating statistical control
- Certification of compliance for aerospace applications

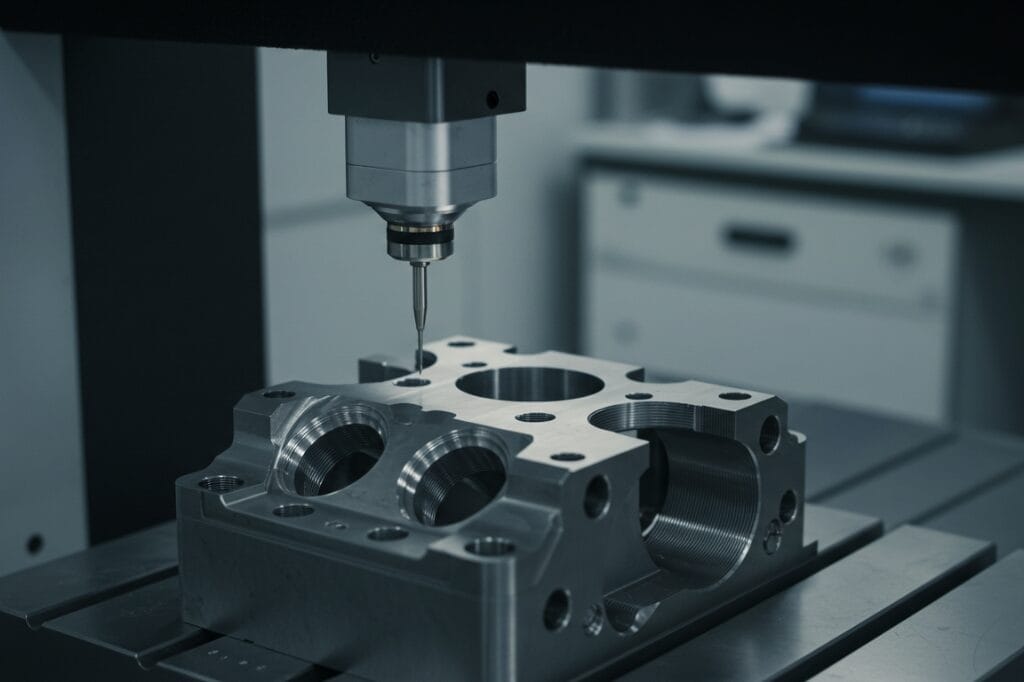

What Industries Trust Our Drilling Services?
Aerospace manufacturers rely on our NADCAP-approved drilling processes for wing spar drilling, engine parts manufacturing, and landing gear assembly operations. Medical device companies utilize our ISO 13485 compliant procedures for surgical instrument production, orthopedic implant manufacturing, and diagnostic equipment fabrication requiring biocompatibility validation.
Industrieanwendungen
- Luft- und Raumfahrt: Wing structures, turbine blades, hydraulic manifolds
- Medizinische: Bone screws, surgical tools, catheter components
- Automobilindustrie: Engine blocks, transmission cases, brake rotors
- Elektronik: PCB via drilling, heat sink manufacturing, connector shells
- Energie: Turbine housings, valve bodies, pressure vessel components
Our machinist team provides expertise including AMS specification compliance, ASTM testing requirements, and FDA regulatory documentation for medical device applications across a wide range of materials.

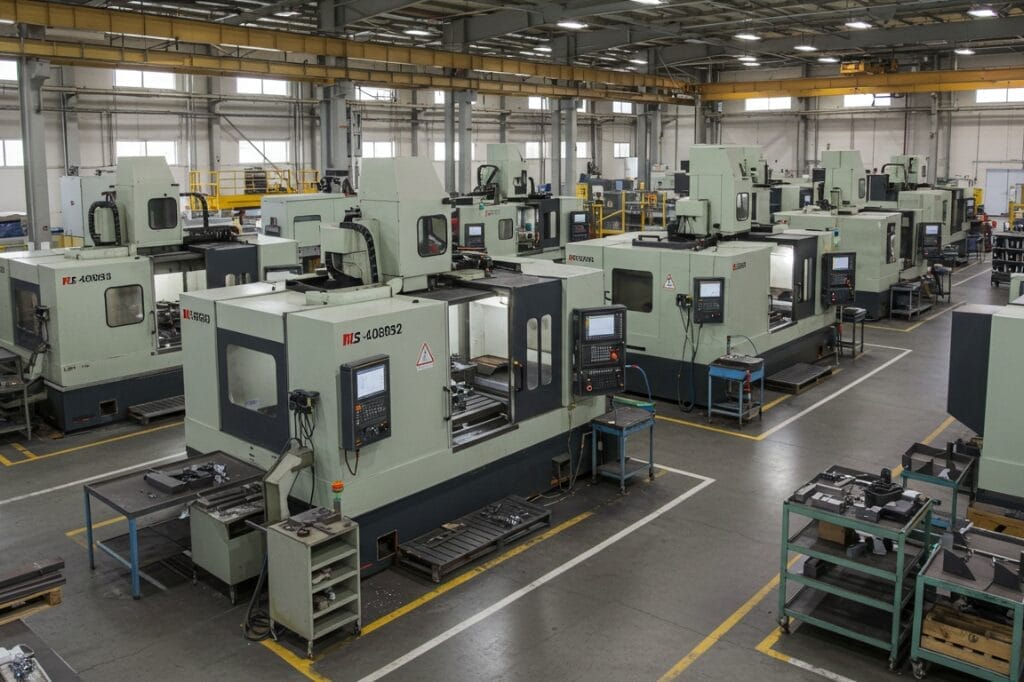

Why Choose Yijin Hardware for Your Drilling Needs?
Yijin Hardware combines advanced CNC milling and drilling capabilities with Industry 4.0 connectivity to deliver precision components that meet specific requirements. This machine shop maintains rigorous quality standards through our commitment to quality while offering competitive pricing and rapid prototyping services for Prototyp through production volumes. Continuous investment in advanced technology and employee training ensures we remain a leading manufacturing partner.
We provide comprehensive design consultation including DFM analysis, material selection guidance, and cost optimization. Our technical support assists customers from initial concept through final delivery with engineering expertise that enhances product performance. Unlike traditional drilling methods or manual drilling approaches, our automated drilling capabilities ensure consistent results across various materials and applications.
For your drilling needs requiring precision CNC machining services, we invite you to request a quote and experience the advantages of CNC drilling technology. Our drilling company combines technical expertise with modern equipment to deliver components that meet your exact specifications with fast turnaround times.
Was unsere Kunden sagen
CNC Drilling Service FAQs
CNC machines use twist drills, center drills, micro drills, spade drills, and specialized tools like gun drills for deep holes. Material and application determine tool selection, with high-speed steel for general purpose work and carbide for production machining. Coated tools featuring titanium aluminum nitride or diamond coatings extend tool life in demanding metal fabrication processes.
CNC drilling ensures repeatable accuracy to ±0.001 inches, eliminates operator fatigue and human error, and enables 24/7 unmanned operation. Automated tool changing reduces setup time while CNC program parameters optimize cutting conditions for each material and geometry combination, resulting in superior surface finish and dimensional consistency compared to traditional drilling methods.
Experienced CNC drilling specialists with multi-axis programming skills earn $50,000 to $80,000 annually in manufacturing regions. Senior machinists with aerospace or medical device experience and supervisory responsibilities can achieve salaries exceeding $90,000. Geographic location, industry sector, and specialized certifications significantly influence compensation levels.
