CNC Wood Routing Services
Yijin Solution CNC-routes wood components and enclosures for product companies, from first prototype through repeat production, with matched tolerances and finishes across every run.
- ✓Projects above USD 1,000 preferred
- ✓Prototype-to-production support
- ✓Wood and CNC metal parts
Rejoignez plus de 3000 entreprises qui travaillent avec Yijin Solution
800 mm
Max. length, width & height
±0,3 mm
Tolérance standard
5–10 sample units
When production potential exists
1,000+ production units
Suitable projects can scale
US delivery
Cross-border manufacturing support
Is Your Project a Good Fit?
Built for product companies, not local one-off cutting. Yijin Solution prioritises commercially valuable projects where engineering support, sourcing and production coordination create meaningful value.
Strong-Fit Projects
Projects above USD 1,000 or with suitable pricing and margin.
Prototypes expected to progress into repeat manufacturing.
Enclosures, housings and components for home and office products.
Projects requiring both wood parts and CNC-machined metal components.
Projects Requiring Review
- Single personal or decorative items
- Local same-day cutting requests
- Projects without drawings or production plans
- Any length, width or height above 800 mm
- Tolerances tighter than ±0.3 mm
You may still send the details. Our team will confirm whether the project can be supported.
Capacités de fabrication en détourage CNC du bois
Confirmed capabilities for wood routing. Materials, finishes and final manufacturability are reviewed against the supplied design before quotation.
| Fonctionnalité | Description |
|---|---|
| Preferred materials | Plywood, MDF, and a wide range of solid woods (walnut, rosewood, maple, cherry, oak, beech, sapele, ash, bamboo, teak, birch, and rubberwood) |
| Maximum dimensions | Length, width and height each up to 800 mm |
| Tolérance standard | ±0.3 mm, allowing for natural wood movement |
| Prototype orders | Accepted for commercially valuable projects or combined wood-and-metal work |
| Commercial guideline | Projects above USD 1,000 preferred |
Preferred Materials
Materials selected for appearance and manufacturability. Final selection depends on the product design, finish, tolerance and expected production environment.
- Contreplaqué
- MDF
- Walnut
- Rosewood
- Maple
- Cherry
- Oak
- Beech
- Sapele
- Ash
- Bamboo
- Teak
- Birch
- Rubberwood
Engineered panel stock for flat parts, enclosures and cost-efficient production runs.
Smooth, paintable panel material for enclosures and parts where the grain is meant to be hidden.
Premium dark appearance for visible housings and product components.
Durable, light-grained hardwood suited to furniture components and visible product parts.
Traitements de surface pour le détourage CNC du bois
Nous appliquons en interne des finitions adaptées au bois pour maîtriser la qualité et le délai. Chaque finition ci-dessous protège la surface du bois, en modifie l'aspect ou prépare la pièce à l'assemblage.
Finition de la surface
SPÉCIFICATIONS
Sablage
Les pièces sortent directement de la machine, les marques d’outil étant éliminées par ponçage progressif aux grains 120, 180, 240 et 320. Finition standard pour les composants de mobilier non finis, les prototypes et les pièces destinées à une finition en aval par l’acheteur.
Polissage
Sanded surfaces are buffed to a smooth, even sheen for parts where appearance and feel matter most. Available in satin or high-gloss finish, applied after sanding and before any protective topcoat.
Oil Finishing
Penetrating Danish oil applied to the sanded surface. Enhances wood grain, evens out color variation across the panel, and adds a warm hand-rubbed look. Color options include natural, golden oak, walnut, ebony, and custom color matching.
Veneering
Thin wood veneer face bonded to a plywood or MDF substrate, giving a real-wood appearance and grain pattern at lower material cost than solid stock. Available in a range of species to match the preferred materials list.
Gravure au laser
Decorative details engraved with a CO₂ laser directly on the CNC router. Used for logos, model numbers, inlay patterns, and signage text. Depth from 0.5 mm for fine detail up to 10 mm for deep relief carving.
Placage de chants et assemblage
Best-Fit Applications
Wood components designed to become real products. Our priority is repeatable commercial work with clear drawings, product requirements and production potential.
Wooden housings for consumer electronics, controls and connected products.
Product housings and visible components where wood adds warmth and differentiation.
Repeatable components for desk accessories, equipment housings and workspaces.
Selected product components where order value and production volume justify sourcing.
Usine de détourage CNC du bois Yijin Solution
Yijin Solution exploite une usine de plus de 25 000 m² à Shenzhen, en Chine. Notre cellule de détourage CNC du bois abrite plusieurs tables de défonçage 3 axes avec maintien par vide, changeurs d'outils automatiques et logiciel d'imbrication, ainsi que des lignes dédiées au ponçage, à la teinte, au placage de chants et à l'assemblage. Les pièces passent du panneau brut au détourage, à la finition et à l'assemblage sans quitter l'usine.
Nous servons des clients en Amérique du Nord, en Europe et en Asie-Pacifique. Chaque commande est expédiée avec un contrôle dimensionnel, les certificats matière le cas échéant et des photos des pièces finies sur demande. Notre usine est certifiée ISO 9001, avec des processus éprouvés pour les programmes de mobilier, les séries de signalétique et les agencements architecturaux.
What's CNC Wood Routing

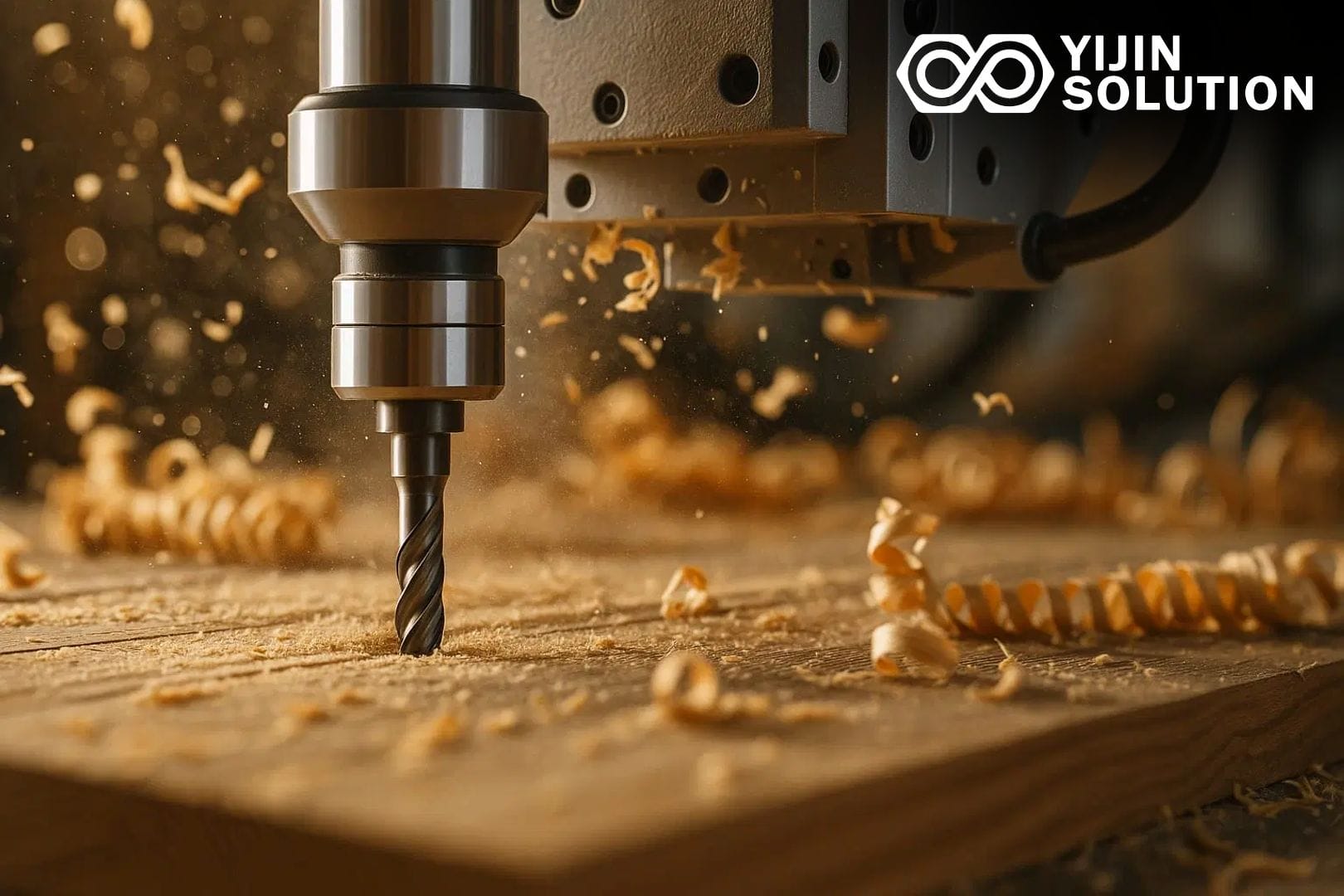

CNC wood routing is a way to cut and shape wood, sheet stock, and composite panels with a computer-guided router. CNC stands for Computer Numerical Control, which means a computer directs every tool movement instead of a human operator. A spinning cutting tool moves along the X, Y and Z axes above a flat panel of material, following the CAD file to cut, carve or profile the part the same way every time.
The process starts with a digital file that defines every cut path. The router then moves the spinning bit through the panel in passes, while a vacuum table or clamps hold the stock flat and still. Finishing operations, such as sanding, oil or polish, and edge banding happen after cutting.
Wood routing differs from CNC turning, where the workpiece itself rotates against a stationary or slow-moving cutting tool to produce cylindrical parts such as shafts or bushings, the opposite motion from routing. It also differs from CNC milling: milling uses the same X/Y/Z cutting motion as routing but is typically set up for heavier-duty work on metal, with different tooling, spindle power and tolerances than wood routing requires. Routing is purpose-built for flat and sheet-stock parts in wood and wood composites.
How Projects Progress
From project review to repeat production
01
Send project details
Provide drawings, material, dimensions, quantities, target date and delivery country.
02
Manufacturing review
We assess commercial fit, sourcing, tolerances and whether the design is ready to quote.
03
Prototype or sample
Suitable projects may begin with sample units to confirm appearance and manufacturability.
04
Production planning
Approved projects move into the agreed first production quantity and repeat-order plan.
Pourquoi choisir Yijin Solution pour le détourage CNC du bois
Nous maîtrisons chaque étape du détourage CNC du bois, de la CAO à la découpe, la finition et l'assemblage. Cette intégration verticale signifie des délais plus courts, une qualité constante sur tous les panneaux et un prix direct d'usine sans marge d'intermédiaire.
Prototypes ship in 7 to 10 business days. In-house design, routing, finishing, and edge banding eliminate supplier handoffs between shops.
Vos panneaux de prototype et de production sortent des mêmes machines avec les mêmes fichiers CAO. Les données d'imbrication sont transférées directement du pilote aux séries, ce qui évite toute requalification lors du passage à l'échelle.
Bois feuillus, contreplaqué, MDF, mélaminé, acrylique, PVC, HDPE, aluminium composite et âmes en mousse, en épaisseurs de panneau de 3 mm à 100 mm. Les clients peuvent également nous envoyer des essences haut de gamme ou des matières spéciales.
Nos concepteurs internes convertissent croquis, photos ou dessins griffonnés en plans CAO prêts pour la production, sans coût supplémentaire lorsqu’ils sont associés à une commande de détourage. Personnalisation paramétrique, détails d’assemblage et optimisation d’imbrication inclus.
Questions fréquemment posées
Questions fréquentes sur le détourage CNC du bois, les matières et notre système de production.
Does Yijin Solution accept one-off wood prototypes?
Yes, when the prototype has strong commercial value, is expected to lead to production, or forms part of a project that also requires CNC metal components.
What is the preferred minimum project value?
Wood-routing projects above USD 1,000 are preferred because sourcing and production coordination require significant team resources. Other projects can still be submitted for review.
What is the largest part you can review?
Each individual dimension must be 800 mm or less: maximum length 800 mm, width 800 mm and height 800 mm.
What tolerance can be achieved?
The approved standard is ±0.3 mm. Natural wood can move or deform, so final tolerance suitability must be reviewed against the design and material.
Which files should I provide?
CAD or STEP files, dimensioned drawings and a bill of materials are preferred. Please also include prototype quantity, first production quantity and estimated annual demand.
Have a commercially viable wood product?
Send your files, quantities and delivery requirements. We will review whether the project is a suitable fit for Yijin Solution’s manufacturing network.
