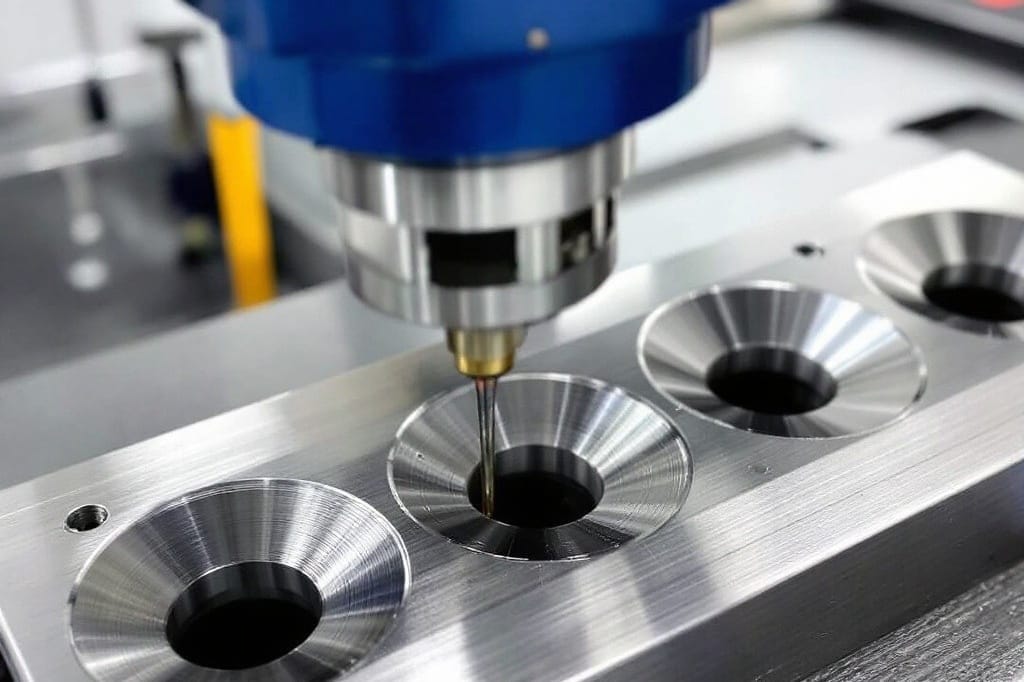

What is Aluminum Extrusion CNC Machining, and How does it Work?
Aluminum extrusion CNC machining combines two essential manufacturing processes to create precision components. The extrusion process begins with aluminum billets (300-600 °C) that are forced through a die using hydraulic pressure of approximately 10,000,000 pounds to extrude specific profiles with consistent cross-sections. These extruded aluminum profiles then undergo precise CNC milling machine operations where computer program-controlled tools add complex features, holes, threads, and surface finishes with dimensional tolerance as tight as ±0.02 mm.
The extrusion process in detail includes billet preparation where aluminum alloy billets are cut with a precision saw and heated; extrusion where heated metal is forced through a custom or standard die profile; cooling where profiles are cooled on dedicated cooling tables to prevent deformation; and cutting where extrusions are cut to specified lengths for machining aluminum effectively.
The Extrusion-to-Machining Workflow:
| Stage | Process | Equipment | Key Considerations |
|---|---|---|---|
| 1. Design | Profile design and tooling | CAD software | Balance between extrusion complexity and machining requirements |
| 2. Die Creation | Manufacturing extrusion die | CNC machining centers | Die material selection for longevity |
| 3. Extrusion | Hot/cold forming of aluminum | Hydraulic press (300-600 °C) | Alloy selection based on end application |
| 4. Cooling | Temperature normalization | Cooling tables | Controlled cooling to prevent warping |
| 5. Cutting | Sectioning to required lengths | Precision saws | Cut accuracy ±0.5 mm |
| 6. CNC Setup | Workpiece mounting, tool selection | 4/5-axis CNC machine | Specialized aluminum clamping to prevent deformation |
| 7. Machining | Adding features to extrusion | High-speed spindles (24,000 RPM) | Optimized cutting parameters for aluminum |
| 8. Finishing | Surface treatments | Anodizing/coating equipment | Application-specific finishing |
Unlike traditional manufacturing methods that often waste material, aluminum profile CNC machining creates near-net shapes first, reducing material costs by up to 30% and machining time while maintaining exceptional structural rigidity. Our approach to aluminum extrusion fabrication ensures rigid, machinable workpieces ideal for subsequent precision manufacturing without efficiency loss.

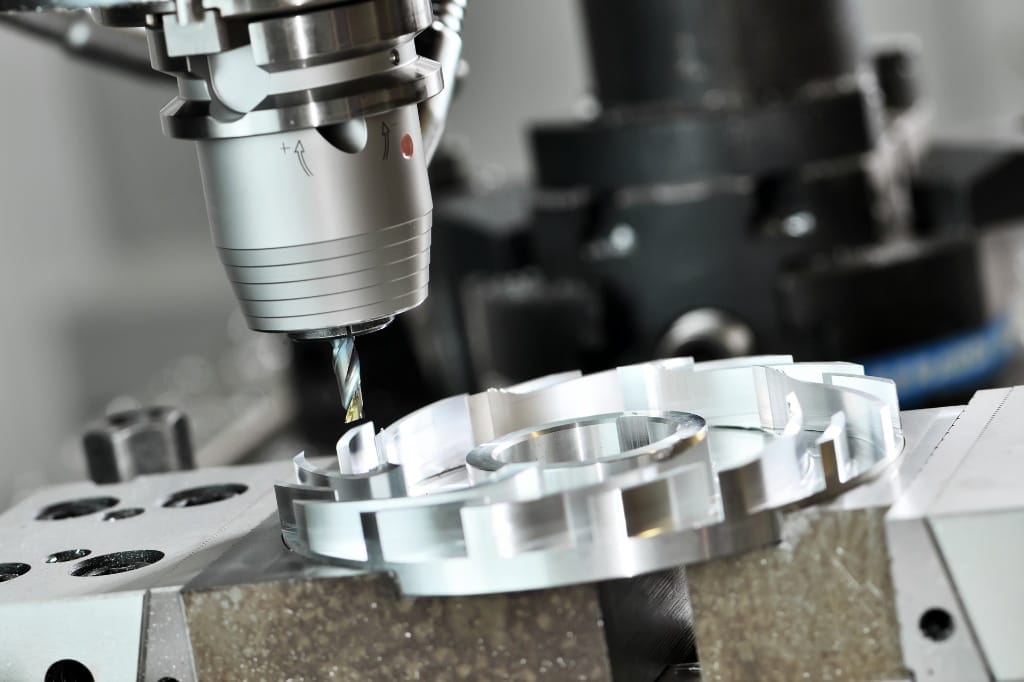

Our Aluminum Extrusion CNC Machining Part Services
Yijin Hardware provides comprehensive machining services that handle your project from design and manufacturing to delivery. Our services include precision multi-axis CNC mill operations on extruded aluminum profiles with tolerance control of ±0.02 mm, transforming standard or custom aluminum extrusion into high-precision aluminum machined parts.
Our machining capabilities feature:
- High-speed spindle operation up to 24,000 RPM for superior surface quality.
- Multi-dimensional machining for drill points, holes, slots, threads, and complex geometries.
- Precision alignment with computer-controlled positioning ensures perfect feature alignment.
- Cutting force control with optimal force levels (1/3 that of cut steel) for aluminum alloys.
Our secondary operations include drilling and tapping with size accuracy of ±0.01 mm; thread milling for superior quality; chamfering and deburring for clean, safe edges; surface texturing and pattern milling; and ability to punch, stamp, and modify sections as needed. All aluminum components undergo our rigorous three-step quality of CNC inspection process with 10-minute interval random checks, ensuring dimensional accuracy across all workpieces. Our gantry systems provide excellent rigidity for consistent results.
Which Industries Benefit Most From Aluminum Extrusion CNC Machining?
Aluminum extrusion CNC machining serves diverse industries requiring lightweight, strong, and precisely machined components. The aerospace industry relies on this process for aircraft structural components, seat tracks, and interior fittings where weight reduction directly impacts fuel efficiency and operational costs.
Various industries benefit from these components, including:
- Aerospace with structural supports and seat tracks requiring weight reduction and high strength-to-weight ratio.
- Automotive with battery housings, heat sinks, and crash management systems needing thermal conductivity and impact resistance.
- Construction with custom frames, curtain wall systems, and balustrades requiring corrosion resistance and aesthetic finishing.
- Electronics with heat sinks, enclosures, and EMI shields demanding thermal conductivity and precision alignment.
- Industrial applications with T-slot framing, gantry systems, and automation equipment requiring structural rigidity and modularity.
Our engineering team has experience across all these sectors, providing specialized knowledge of industry-specific requirements and regulations that affect component design. This expertise helps us deliver aluminum sections that not only meet dimensional specifications but also perform optimally in their intended applications. Aluminum is highly versatile for these applications due to its excellent strength-to-weight ratio.
What Aluminum Alloys Work Best for CNC Machined Extrusions?
Aluminum section CNC machining requires selecting the right alloys that offer different performance characteristics for specific applications. The choice significantly impacts machinability, surface finishes, and the final component’s mechanical properties. Our material options include:
- Alloy 6061 with yield strength of 276 MPa, good corrosion resistance, and excellent weldability, ideal for aerospace components, marine equipment, and structural frames with excellent machinability
- Alloy 6063 offering yield strength of 214 MPa, superior surface finish, and enhanced anodize response, perfect for architectural profiles, consumer products, and decorative components with very good machinability
- Alloy 7075 provides a yield strength of 503 MPa, high strength-to-weight ratio, and good fatigue resistance, suitable for aerospace structures, defense applications, and high-performance equipment with good machinability.
Machining considerations vary by alloy:
- 6061 requires optimal rake angle 8-10° for your tool with cutting speed 500-1000 m/min.
- 6063 needs optimal rake angle 6-8° with cutting speed 600-1200 m/min.
- 7075 works best with optimal rake angle 10-12° and cutting speed 300-800 m/min.
Our metallurgists and machining specialists work together to optimize material selection based on your specific requirements for strength, weight, corrosion resistance, and surface finish quality.
Why Choose Aluminum Extrusion CNC Machining Over Other Manufacturing Methods?
Aluminum extrusion CNC milling offers significant advantages over traditional manufacturing methods for many applications. This hybrid approach achieves precision tolerances as tight as ±0.02 mm while maintaining cost-efficiency through optimized material usage and reduced machining time. Key advantages over alternative methods include:
- Material efficiency with near-net shapes reduces material waste by 30-50%.
- Processing speed with typical lead times 30-50% shorter than using a lathe or router alone.
- Complex geometries creating internal channels and features impossible with conventional machining.
- Consistent properties with uniform material characteristics throughout the component.
- Surface quality with Ra values as low as 0.8μm without secondary finishing.
This approach is perfect for long components with consistent cross-sections requiring precise features; parts needing internal channels or complex hollow sections; components requiring high strength ratio to weight; applications with tight tolerance requirements; and medium to high volume production runs.
If you want to build custom aluminum components with exceptional quality, the combination of extrusion and CNC technology delivers superior results for almost nothing compared to traditional all-machined parts in terms of cost. Additionally, the inherent corrosion resistance and conductivity properties of aluminum make these components ideal for applications requiring long-term durability.

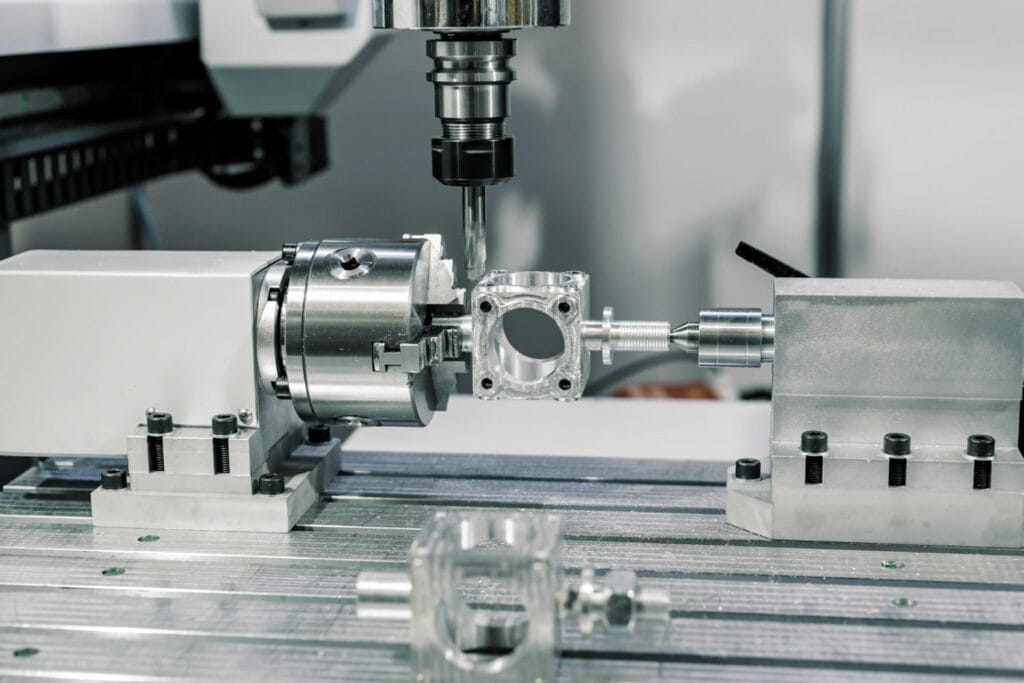

How does Yijin Hardware’s Multi-Axes CNC Machine Enhance Aluminum Extrusions?
Yijin Hardware’s advanced CNC mill machine capabilities transform standard aluminum extrusions into complex, high-precision components. Our multi-axis machining approach allows tools to access the workpiece from multiple angles simultaneously, eliminating the need for multiple setups and ensuring higher precision with fewer alignment errors.
Our CNC systems feature rotational capability with:
- A-axis rotation of 360° around X-axis (similar to WorkBee design).
- Angular machining with B-axis tilting up to ±110° for compound angles.
- Spindle power from 8.5kW high-frequency electro-spindles with motor efficiency.
- Tool systems using HSK F-63 toolholders with thermal stability control.
- Automated tool changing with 10-18 position tool magazines with 8-second change time.
Advanced features include self-motorized clamp systems that move to calculated positions simultaneously; linear and circular interpolation on three axes with beam rotation around X-axis; reference stops at each beam end for consistent part positioning; and real-time measurement systems with automatic compensation for tool wear.

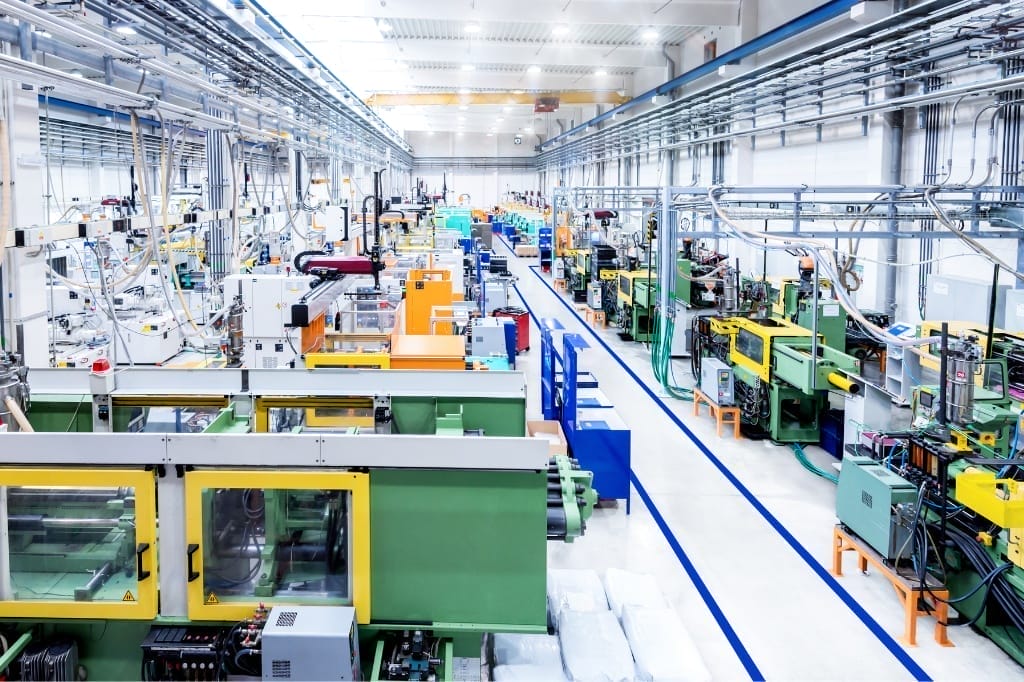

What Makes Yijin Hardware Your Ideal Partner for Aluminum Extrusion CNC Machining?
Yijin Hardware stands apart as your ideal partner for aluminum CNC machining through our comprehensive manufacturing capabilities and specialized expertise. Our facility houses the latest cutting-edge milling machines specifically optimized for aluminum processing, capable of maintaining ±0.02 mm tolerances consistently across production runs.
Our unique three-step quality control system includes:
- Pre-production verification with CAD simulation and collision detection.
- In-process monitoring with real-time dimensional verification during machining.
- Post-machining inspection with comprehensive measurement and digital reporting.
Our specialized aluminum expertise features optimized cutting parameters for specific aluminum alloys; custom cooling systems for thermal stability during machining; specialized tooling designed specifically for aluminum grades; and advanced chip evacuation systems preventing material buildup.
With our one-stop solution capabilities, we handle everything from extrusion selection to machining, powder coating, anodize treatments, and assembly. This approach increases productivity while eliminating the coordination and quality issues that arise when working with multiple suppliers. Contact us for high precision parts that meet your exact specifications.
What Our Clients Say
Aluminum Extrusion
CNC Machining Service FAQs
Hot extrusion processes heat aluminum billets to 300-600 °C, making the metal supple but not liquid, allowing for greater volumes of aluminum to be fed into the die quickly and at lower pressure. Cold extrusion operates at room temperature or slightly elevated temperatures (below 150 °C) and produces parts with superior mechanical properties, excellent surface finish, and better resistance to oxidization. Hot extrusion works well for most standard profiles, while cold extrusion is preferred for precision components with tight tolerances and superior strength requirements.
Optimal cutting tools for aluminum extrusion machining include carbide end mills with polished flutes and rake angles greater than 6° (up to 12°). For high-performance machining, tools with TiN or TiCN PVD coatings are recommended for alloys containing less than 7% silicon. Diamond-coated carbide (CVD Diamond) or polycrystalline diamond (PCD) tools with 15° rake angles provide the best performance for production runs. Cutting speeds can reach 2000-3000 m/min with high-speed spindles, and feed rates should be limited to 0.3 mm per revolution to account for aluminum’s lower modulus.
Oil emulsion cooling systems provide optimal heat dissipation during aluminum machining, dissipating approximately 200 kg/J of heat energy. These cooling systems serve three critical functions: dissipating heat generated by cutting and friction, preventing aluminum chips from bonding to cutting tools, and efficiently removing chips from the cutting area. Proper cutting fluids must be compatible with aluminum alloys (containing no chlorine or sulfur compounds), include antibacterial properties to prevent fungal growth, and meet environmental standards. For tapping operations, specialized cutting fluids with lubricity additives reduce friction and extend tool life significantly.
CNC Resources

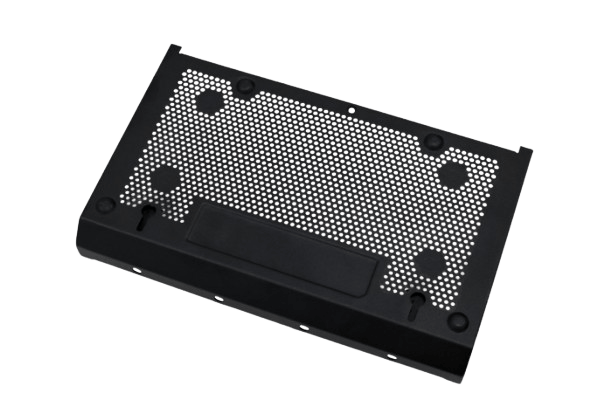

Accelerating Computing Power
How can we achieve a 15% improvement in heat dissipation efficiency and a 30% reduction in production cycle through the

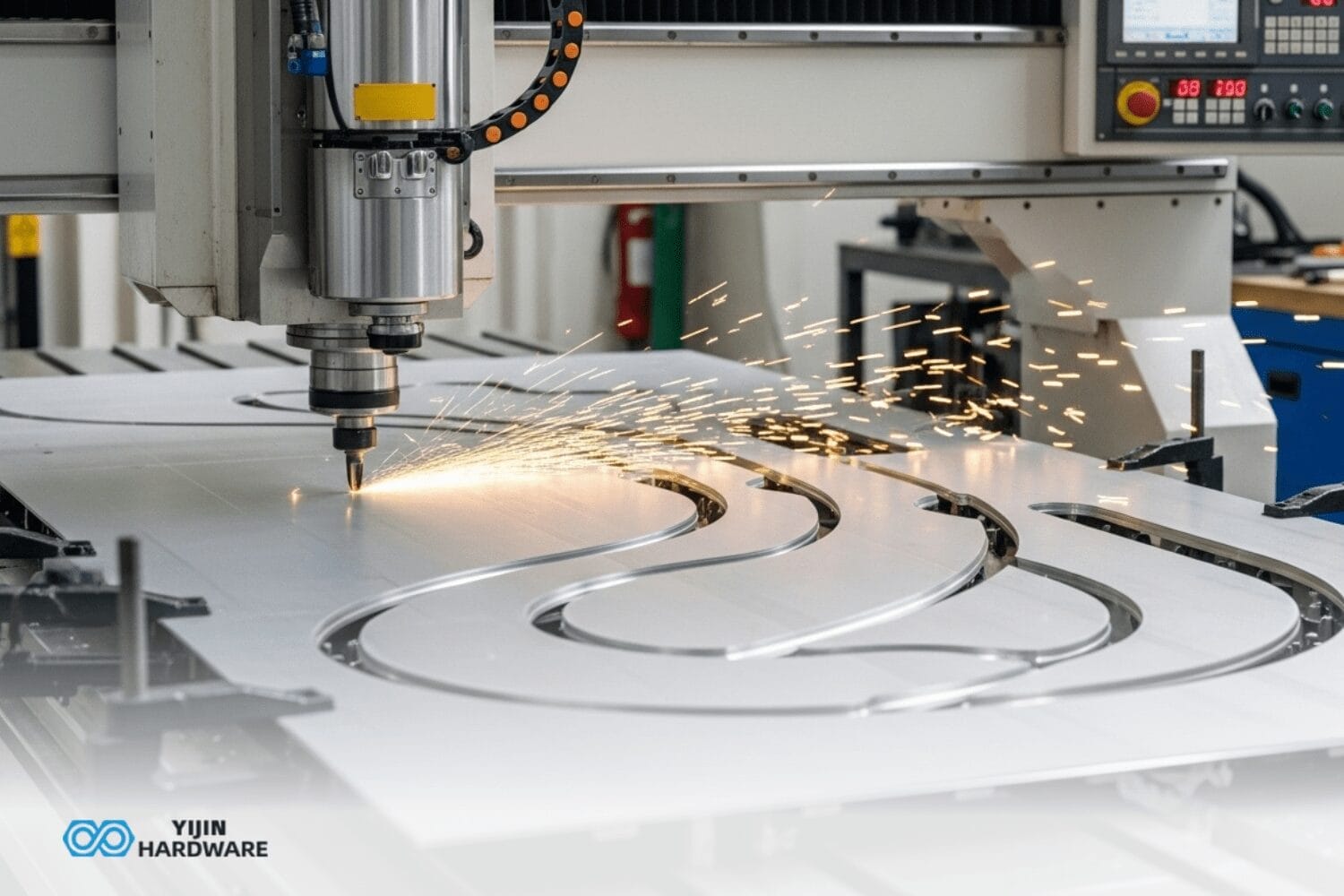

The 10 Best Sheet Metal Fabrication Companies China
China dominates global sheet metal forming for good reason, decades of manufacturing expertise, significant investment in advanced equipment, and production

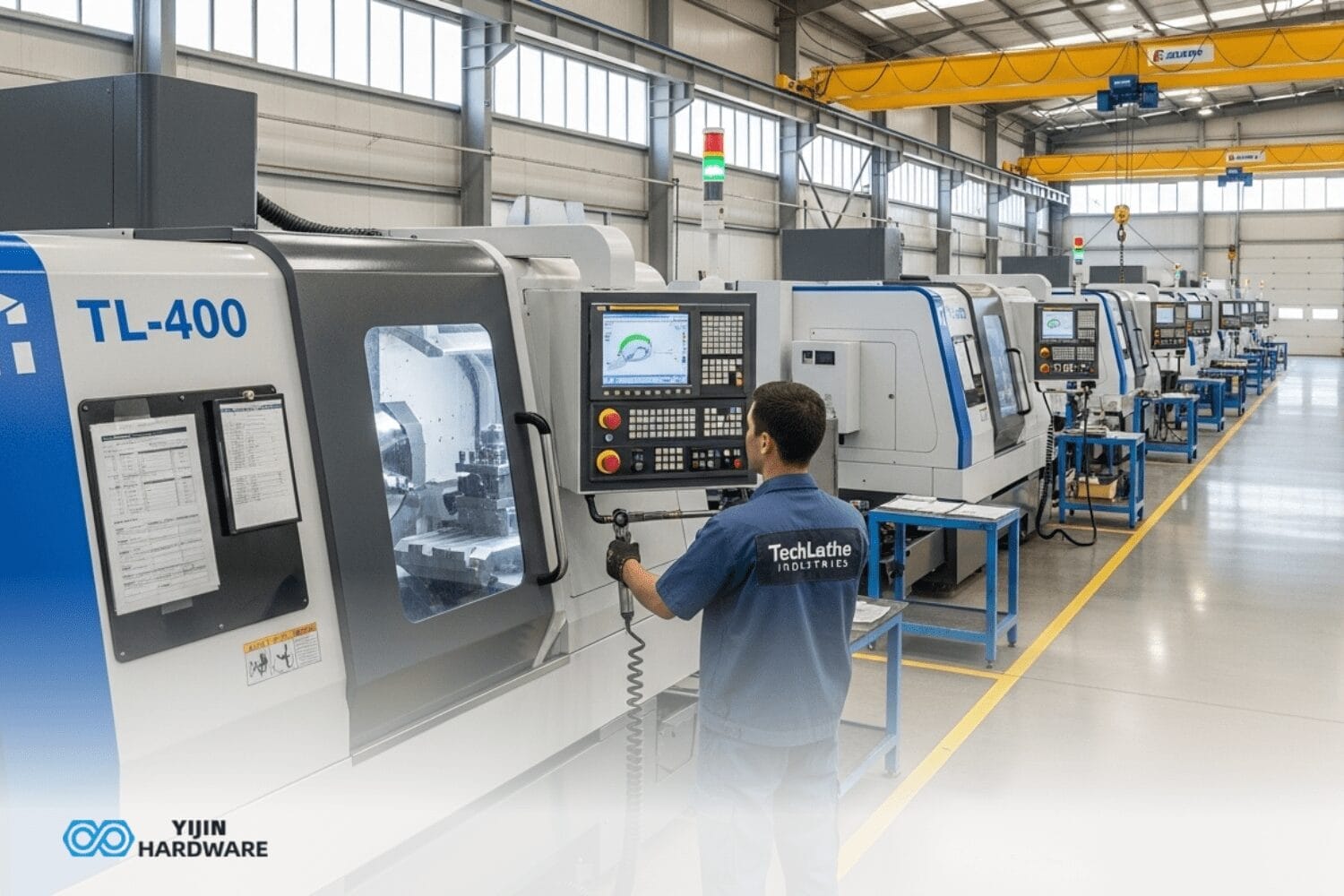

Top 10 CNC Lathe Manufacturers
