Humanoid Robot CNC Joint Manufacturing
Humanoid robot joints face an almost impossible set of demands. They need to be strong enough to support loads and withstand impacts, flexible enough to allow natural movement ranges, and precise enough to position limbs within fractions of a millimeter, all whilst enduring thousands of movement cycles without degrading.
At Yijin Solution (formerly Yijin Hardware), we specialize in CNC-machined joints for humanoid robotics. Our manufacturing process delivers the precision humanoid systems demand. This isn’t just about making parts that fit together; it’s about engineering components that enable your humanoid robot to move the way it’s designed to, reliably and repeatably, in real-world operating conditions.
- ⬤Сервис
- ⬤Ваши данные
- ⬤Отправить

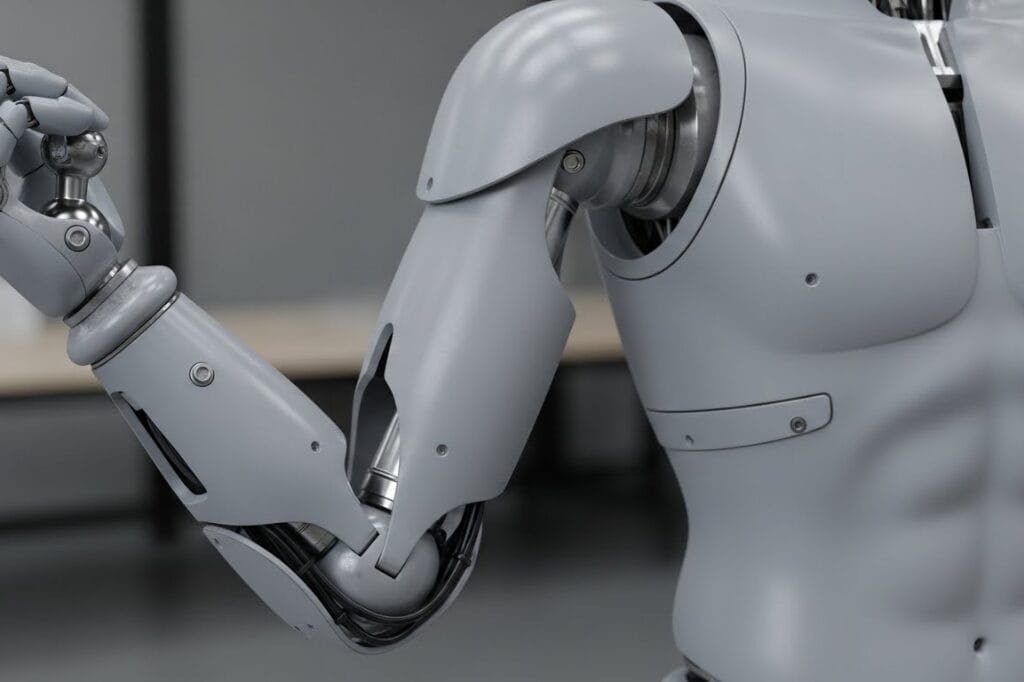

What Makes Humanoid Robot Joints So Important Anyway?
Humanoid robot joints are where theory meets reality. You can design the most sophisticated control algorithms and mount the most powerful actuators, but if the joints can’t translate that into smooth, precise movement, the entire system fails to deliver.
These components enable everything from basic locomotion to complex manipulation tasks. When a humanoid robot walks across uneven ground, the leg joints absorb impacts and maintain balance. When it picks up a fragile object, wrist and finger joints provide the controlled, gentle movement needed to avoid damage. Every action a humanoid robot performs flows through these joints.
The engineering challenges are substantial. Joints must handle high torque loads without deforming, operate under significant stress without wearing prematurely, and maintain dimensional accuracy across their entire range of motion. A joint that shifts even a fraction of a millimeter under load throws off the robot’s positioning, making precise tasks impossible.
At Yijin Solution (formerly Yijin Hardware), we manufacture these critical components using precision Обработка на станках с ЧПУ. Whether you need linear actuator housings, rotational joint assemblies, or complex multi-axis joints, our process ensures each component meets the tight tolerances humanoid systems require. The joints we produce handle continuous loads, absorb operational forces, and maintain their performance in demanding industrial and service environments—because in robotics, “close enough” isn’t good enough.

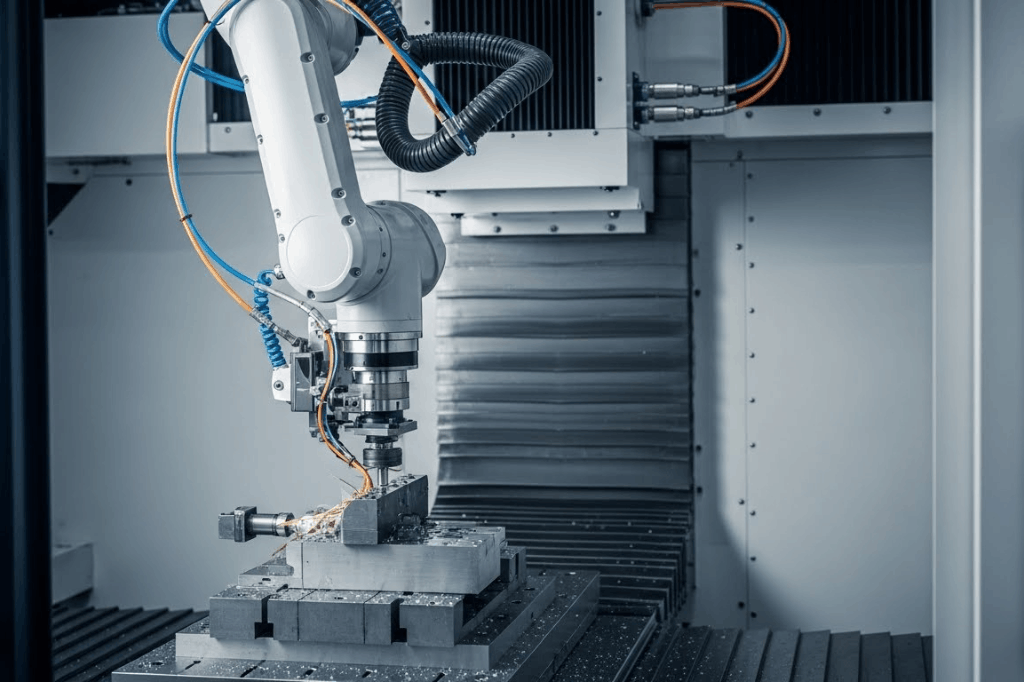

What is CNC Machining for Humanoid Robot Joints?
CNC machining for humanoid robot joints refers to the use of computer numerical control (CNC machines) to automate the production of robot joints with high-precision and accuracy. Using machining centers such as our 5-axis CNC machines, we create intricate joint designs that would be impossible to manufacture manually. This machining process enables us to produce robotic components with tight tolerance and dimensional accuracy. We leverage the latest CNC machining technology to ensure each robot joint is manufactured to meet the most demanding specifications in the humanoid robotics industry.

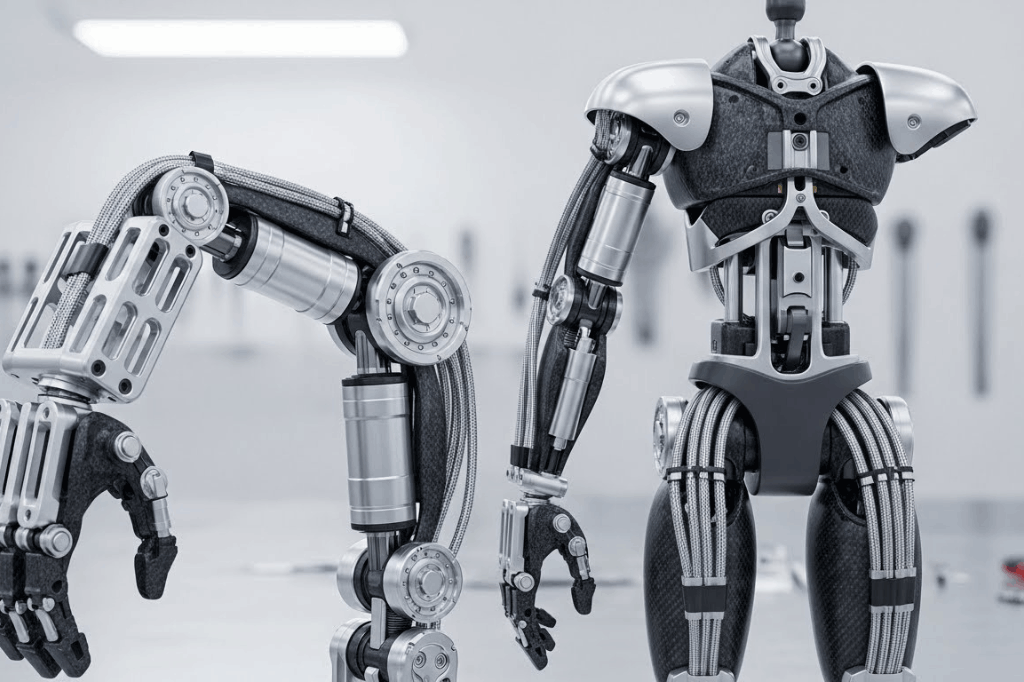

Our CNC Joint Manufacturing Services
Yijin Solution (formerly Yijin Hardware) provides a range of CNC joint manufacturing services to meet the unique needs of the humanoid robot industry. Here’s a breakdown of our capabilities:
- 5-осевая обработка с ЧПУ: Our 5-axis CNC equipment enables the creation of complex shapes and robot joint components that require intricate movements. This capability is crucial for joints that need to rotate, extend, and move linearly.
- Экспертиза материалов: We use advanced materials such as titanium alloys (Ti-6Al-4V), 7075-T6 aluminum, and PEEK to create robot parts that are lightweight yet durable. These materials are essential for joints exposed to high stresses, such as rotational motion joints and linear actuators.
- Precision Surface Finishing: We apply Ra ≤ 0.4 µm for critical mating surfaces and Ra ≤ 0.8 µm for non-critical areas, ensuring smooth motion and minimal wear on every robot joint.
- Постобработка: We offer post-processing services such as stress relief, aging, and electrochemical machining (ECM) to ensure that each joint component is treated for maximum durability and precision manufacturing.

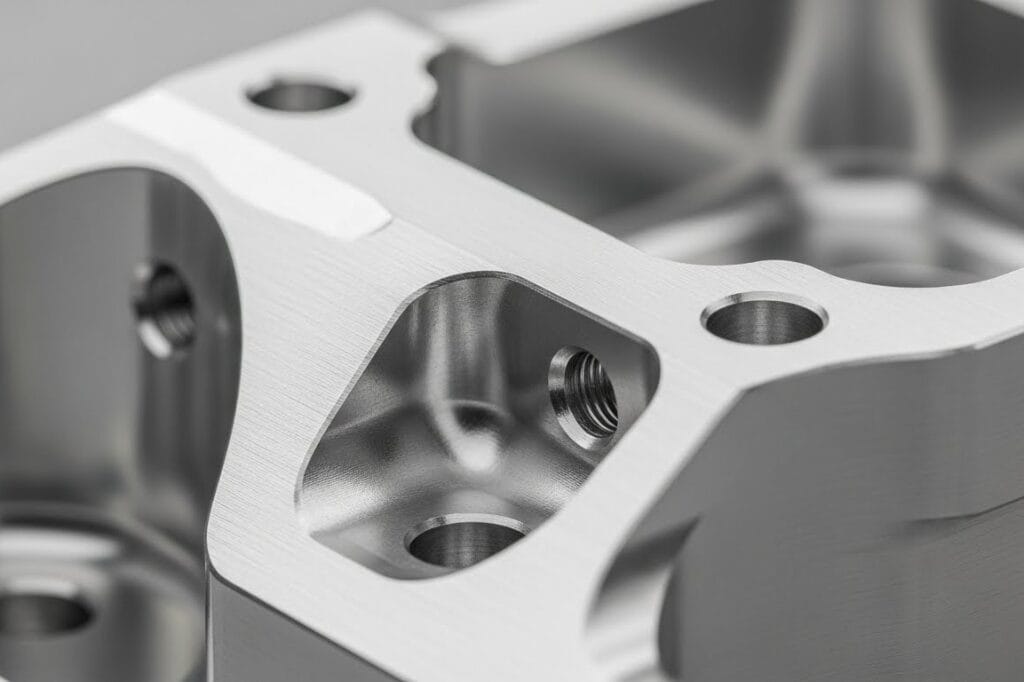

Materials Used for CNC Joint Manufacturing
| Материал | Свойства | Common Use |
|---|---|---|
| Титан Alloys (Ti-6Al-4V) | High strength-to-weight ratio, corrosion-resistant | High-stress joints (elbows, knees) |
| 7075-T6 Алюминий | Lightweight, strong, and resistant to fatigue | Structural joints, lightweight arms |
| PEEK (Polyether ether ketone) | High wear resistance, low friction | Fine-movement joints (hands, fingers) |
How do We Ensure High-Quality, Precise CNC Joints?
Our commitment to precision manufacturing ensures that every humanoid robot joint meets the highest standards. Here’s how we achieve it:
- CAD/CAM Дизайн: We begin with CAD designs that are optimized for CNC technology, converting 3D models into machining instructions that guide our machines to produce the perfect part.
- Прецизионная обработка: Using 5-axis CNC machines, we achieve ±0.01 mm tolerance, enabling us to produce joints with high-precision that can withstand high-precision motion tasks.
- Post-Processing and Quality Control: After machining, each part undergoes post-processing, including stress relief and aging. Every joint is checked for machining accuracy using statistical process control and in-process gauging (e.g., Renishaw OMP600).
- Тестирование: Each joint component is tested to ensure it meets dimensional accuracy and functional standards. We use advanced CNC machining equipment to check tolerances and finish quality, ensuring each piece is ready for robotic integration.
What Makes Yijin Solution (formerly Yijin Hardware)’s CNC Joints Different?
Yijin Solution (formerly Yijin Hardware) sets itself apart by offering comprehensive solutions for robot joint production that combine precision, quality, and efficiency. Here’s why our service stands out:
- End-to-End Service: From initial design consultation to final inspection, we offer a complete solution, reducing lead time and ensuring a smooth production process.
- Передовые технологии ЧПУ: Our use of multi-axis CNC machining centers enables us to manufacture robotic components that other suppliers simply cannot produce with the same accuracy.
- Материаловедение: We use high-precision materials like titanium alloys and PEEK to ensure that every joint we produce is both lightweight and durable.
- Проверенный послужной список: We are experienced in the production of humanoid robot joints and have worked with leading companies in robotics to create reliable, high-precision parts that can withstand the most demanding robotic tasks.
How do We Achieve Precision CNC Manufacturing for Humanoid Robot Joints?
Our precision CNC machining process is designed to meet the specific needs of humanoid robotics and the robot parts industry. Key aspects of our process include:
- 5-осевые станки с ЧПУ: These machines provide precision across multiple axes, allowing for the creation of robot joint components with complex shapes and fine details, such as rotary actuators and linear actuators.
- Оптимизация траектории движения инструмента: We optimize machining parameters to enhance precision and improve tool life, reducing errors and improving machining accuracy.
- Cryogenic Cooling: To maintain the dimensional stability of metals like titanium, we use cryogenic cooling, which prevents expansion and warping during machining.
What is the Lead Time for CNC Manufactured Humanoid Robot Joints?
Lead times for CNC manufacturing depend on the complexity of the design and the materials chosen. Typically, robot joint production takes 4–6 weeks. However, we offer expedited services for urgent projects, ensuring fast turnaround without compromising on precision.

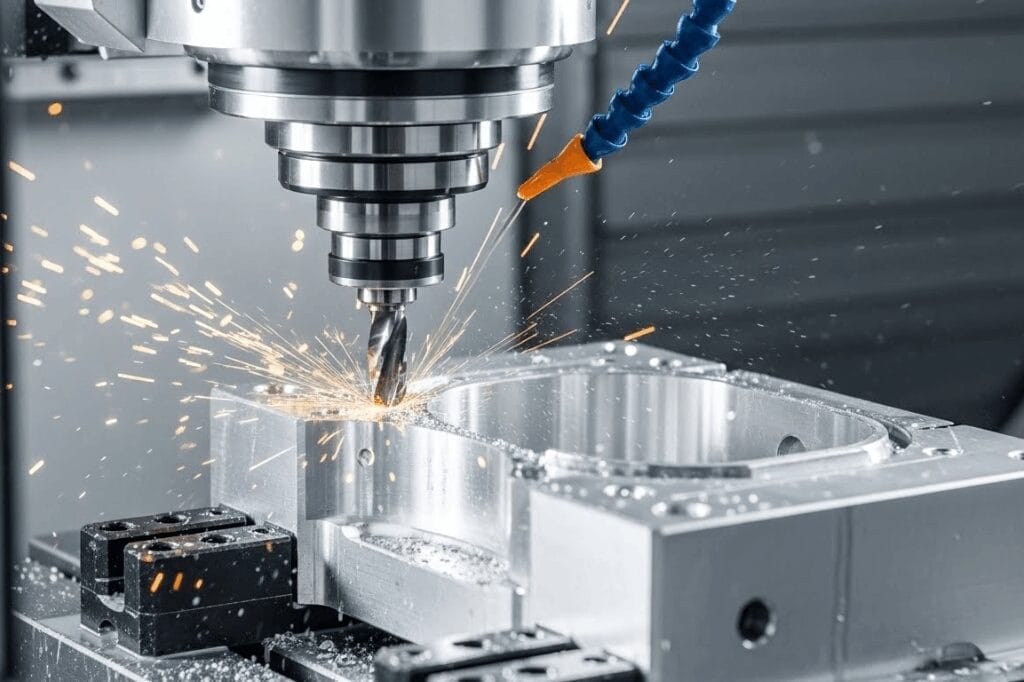

Why Choose Yijin Solution (formerly Yijin Hardware) for Your CNC Joint Manufacturing Needs?
Yijin Solution (formerly Yijin Hardware) offers more than just high-precision manufacturing for humanoid robots. Our unique combination of technology, expertise, and customer service ensures that your robot joint components are of the highest quality:
- Передовые технологии: We use the latest CNC machining equipment, including 5-axis machining centers, for precision manufacturing.
- Materials Expertise: Whether you’re building humanoid robotics for medical, industrial, or entertainment applications, we provide the best materials for your project.
- Proven Process: Our streamlined process, from design consultation to final inspection, guarantees that every part meets your specifications.
Start Your Precision CNC Joint Manufacturing Today
Yijin Solution (formerly Yijin Hardware) is committed to providing high-precision CNC joint manufacturing for humanoid robots. We combine the latest machining technology with expert craftsmanship to produce robot joints that meet the exacting standards of the robotics industry. Whether you’re working on a humanoid robot for industrial, medical, or commercial purposes, we are your trusted partner in precision manufacturing.
Contact us today to get a consultation and quote for your CNC machining needs. Let Yijin Solution (formerly Yijin Hardware) help you build the robotic solutions of the future with precision and reliability.
Что говорят наши клиенты
Humanoid Robot CNC Joint Manufacturing FAQs
Animatronic joints use a combination of motors, gears, and actuators to replicate human-like movements. These joints are controlled by precise algorithms that simulate muscle contractions and enable lifelike motions.
A CNC (Computer Numerical Control) machine is used in robotics to automate the process of manufacturing robot parts with high precision. CNC machines follow a set of instructions from a computer to perform operations like cutting, milling, and drilling with exceptional accuracy.
The Hyundai H-1 robot features three prismatic joints, which allow for linear movement, an essential capability for tasks like lifting and extending limbs.
