CNC Bicycle Parts
Ever wonder why pro cyclists and serious riders are obsessed with CNC machined components? The difference isn’t just marketing hype — it’s measurable performance you can feel with every pedal stroke. Our precision CNC manufacturing creates bike parts with tolerances down to ±0.005 inches. This microscopic precision translates to components that fit perfectly, function flawlessly, and transfer power more efficiently than mass-produced alternatives.
We craft everything your bike needs — from bottom brackets and cranksets to brake calipers and chainrings — using Materialien that deliver the perfect balance of weight, strength, and durability. Our specialty is working with premium materials that standard manufacturing struggles with — aircraft-grade aluminum alloys (6061 and 7075), titanium 6AL-4V that’s lighter than steel but just as strong, performance steel 4140, and advanced polymers. The result? Components that aren’t just lighter — they’re more reliable, responsive, and durable than what came stock on your bike. The difference isn’t something you just see — it’s something you feel with every ride.
- ⬤Dienst
- ⬤Deine Details
- ⬤Einreichen

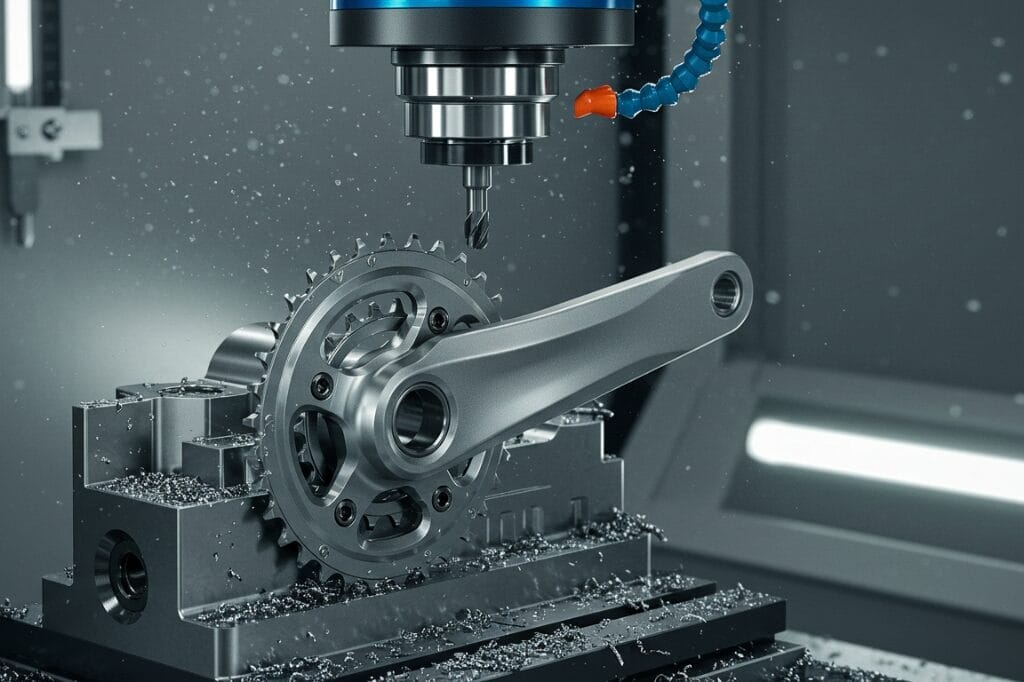

What are CNC Bicycle Parts?
CNC machined bicycle components are precision-engineered parts manufactured using Computer Numerical Control technology that removes metal from solid blocks to achieve exact specifications. This subtractive manufacture process produces superior dimensional consistency, repeatable quality, and enhanced mechanical properties compared to casting, forging, or traditional machining methods. CNC equipment eliminates human error while creating complex geometries impossible with conventional parts fabrication techniques.
Why Precision Machining Makes Bike Parts That Simply Work Better
- Insane Precision: Our multi-axis CNC systems cut parts with accuracy from ±0.005 inches down to ±0.0005 inches for bearing surfaces – that’s about 1/10 the thickness of a human hair
- Smart Material Use: We strategically remove material where it doesn’t affect strength, creating parts that are lighter without sacrificing durability
- Impossible Shapes Made Possible: Our 5-axis machines create those complex curves, internal passages and undercut features in single setups that would require multiple operations otherwise
- Perfect Consistency: Unlike hand-finishing, our computer-controlled process ensures the 100th part matches the 1st one exactly
The magic happens when we translate detailed CAD designs into G-code — basically, digital instructions that guide cutting tools along paths accurate to microns. Our shop isn’t limited to basic machines either — we run everything from 3-axis mills for simpler parts to advanced 5-axis systems for those complex components, plus CNC lathes that handle everything from tiny fasteners to complete frame sections. When bikes have components this precise, you feel the difference immediately in how everything just works together.

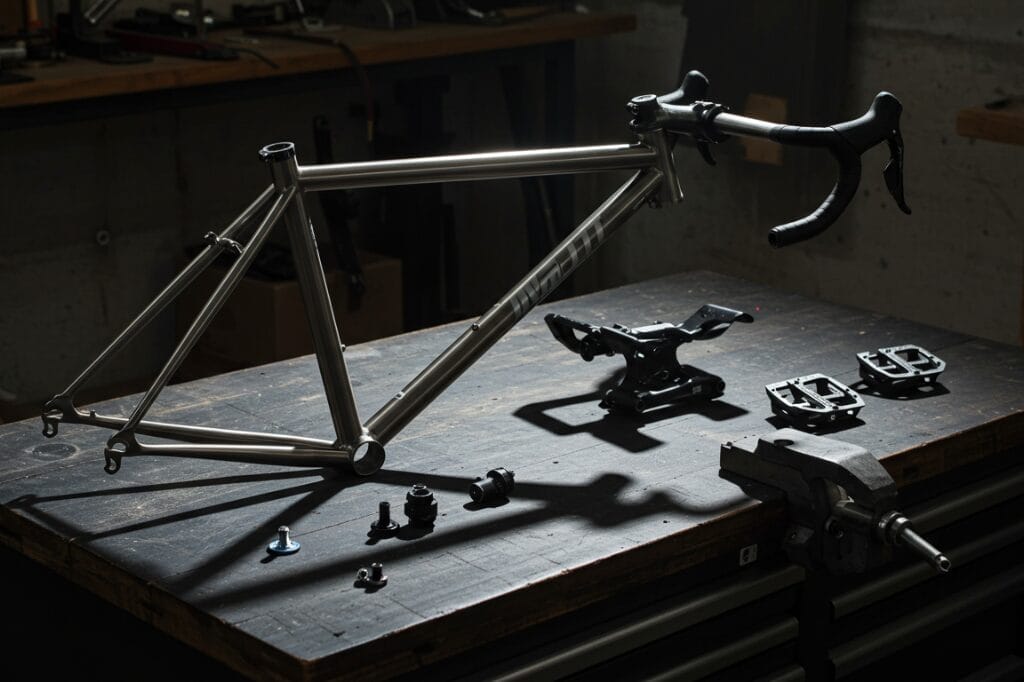

Our Complete CNC Bicycle Parts Manufacturing Services
We manufacture comprehensive bicycle component categories using advanced machining centers and specialized tooling designed for cycling applications. Our capability spans frame elements, drivetrain systems, control features, and comfort accessories from prototype quantities to high volume production runs exceeding 10,000 units. Each custom bicycle part undergoes Design for Manufacturing optimization to ensure cost-effective production and optimal performance characteristics.
Component Manufacturing Categories
| Bauteil-Typ | Specific Parts | Materialien | Toleranzbereich |
|---|---|---|---|
| Frame Components | Bottom brackets, headsets, dropouts, tube connections | Aluminum 6061/7075, Steel 4140 | ±0.002-0.005 inches |
| Drivetrain Parts | Cranksets, chainrings, cassettes, derailleur components | Aluminum 7075, Titanium 6AL-4V | ±0.001-0.003 inches |
| Kontrollsysteme | Handle bar assemblies, stem mounts, brake levers | Aluminum 6061, Carbon fiber molds | ±0.003-0.005 inches |
| Comfort Elements | Seat posts, pedal platforms, cable guides, clamps | Aluminum alloys, Steel grades | ±0,005 Zoll |
Advanced Manufacturing Processes
- 5-Achsen-Bearbeitung: Enables complex integrated bottom brackets with precise bearing seats at compound angles
- Hochgeschwindigkeitsschneiden: Specialized carbide tooling achieves superior surface finish on curved aluminum surfaces
- Custom Fixturing: Component-specific workholding ensures rigid support during precision operations
- Schnelles Prototyping: Quick-turn machining for custom bike development and testing phases
Which Materials Deliver the Best Performance for Your Bike?
Material selection directly impacts component performance, durability, and rider experience across different types of bicycles including mountain, BMX, and tour applications. Aluminium alloys dominate bicycle manufacturing due to excellent strength-to-weight ratios, corrosion resistance, and machinability characteristics. Premium applications utilize titanium and steel alloys where specific performance requirements justify material price considerations.
Aluminum Alloy Specifications
Aluminium 6061-T6
- Zugfestigkeit: 310 MPa
- Applications: Handlebars, stems, seat posts, general frame components
- Benefits: Excellent weldability, moderate cost, good corrosion resistance
Aluminum 7075-T6
- Zugfestigkeit: 572 MPa
- Applications: Cranksets, high-stress frame junctions, race components
- Benefits: Superior strength, lightweight properties, precise machining characteristics
Premium Material Options
- Ultimate Tensile Strength: 1100 MPa
- Weight Reduction: 40% lighter than equivalent steel components
- Applications: Premium frames, high-end cranksets, racing components
- Applications: Axles, bolts, small mechanical parts, vintage frame restoration
- Benefits: Exceptional durability, heat treatment capability, cost-effective
Plastic Parts and Polymer Components
- Applications: Cable housing, accessory mount systems, protective covers
- Benefits: Chemical resistance, impact absorption, design flexibility

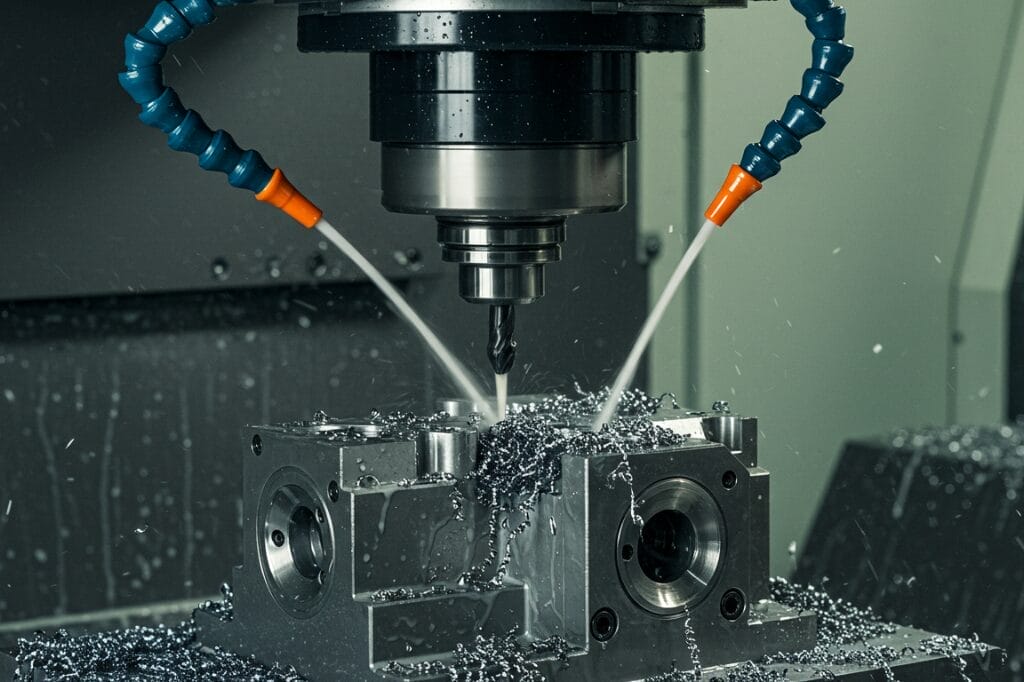

How does Our Precision Machining Process Work?
Our CNC machining process begins with comprehensive design analysis using SolidWorks and AutoCAD software to optimize manufacturability and identify potential engineering issues. CAM programming converts designs into efficient tool paths while selecting appropriate cutting strategies, spindle speeds, and feed rates for each material type. Setup procedures include workholding selection, cutting tool preparation, and machine calibration to achieve specified tolerances.
Step-by-Step Manufacturing Process
- Design Analysis: DFM evaluation identifies optimization opportunities for cost and performance
- CAM-Programmierung: Tool path generation using advance simulation software prevents collisions and optimizes cycle times
- Einrichten der Maschine: Precision workholding and calibrated tooling ensure accurate part positioning
- Machining Execution: Multi-axis cutting with real-time monitoring maintains dimensional control
- Qualitätskontrolle: CMM measurement verifies all critical dimensions and geometric tolerances
- Veredelungsarbeiten: Surface treatments include anodizing, powder coating, or heat treatment as specified
Quality Control Standard Implementation
We maintain dimensional accuracy using Coordinate Measuring Machines calibrated to aerospace specifications. Surface finish verification employs calibrated profilometers measuring Ra values from 32 microinch (bearing surfaces) to 125 microinch (general surfaces). Material certifications document exact alloy composition, heat treatment conditions, and mechanical properties for complete traceability.
What Quality Standards Ensure Your Components Meet Safety Requirements?
We maintain ISO 9001:2015 certification for quality management systems, ensuring consistent manufacturing processes and continuous improvement initiatives. Our quality procedures follow ASME Y14.5 Geometric Dimensioning and Tolerancing standards, providing clear specifications for critical bicycle component features. Material certifications accompany every shipment documenting alloy composition, heat treatment condition, and mechanical properties with ITAR compliance where required.
Certification and Testing Standards
- ISO 9001:2015: Quality management system certify processes
- ASME Y14.5: Geometric dimensioning and tolerancing compliance
- Material-Zertifizierungen: Complete chemical composition and mechanical property documentation
- CMM-Prüfung: ±0.0001 inches measurement accuracy on critical dimensions
- OEM Compatible: Parts made to original equipment manufacturer specifications
Component Testing Protocols
Critical safety components undergo comprehensive testing including tensile analysis, fatigue evaluation, and stress concentration assessment using finite element analysis. Cyclic loading components like crank arms and pedal systems receive durability testing simulating extended use periods. We utilize sheet metal fabrication and 3D printing for custom tooling and fixtures supporting our precision manufacturing operations.
How do We Machine Complex Bicycle Geometries Others Can’t?
Complex bicycle geometries require specialized machining strategies and advanced equipment capabilities that standard machine shops cannot provide. Our 5-axis CNC machining centers enable simultaneous cutting tool movement along multiple axes, creating compound curves, internal passages, and undercut features impossible with 3-axis equipment. This capability proves essential for integrated components like MTB bottom brackets requiring precise bearing seats at specific angles.
Fortgeschrittene Bearbeitungskapazitäten
- 5-Axis Simultaneous: Creates complex curves and internal features in single operations
- Custom Tooling: Specialized end mills and holders designed for bicycle-specific geometries
- Adaptive Machining: Variable cutting parameters optimize surface finish on varying wall thicknesses
- Trochoidales Fräsen: High-efficiency roughing strategies for lightweight component production
- Precision Grind: Secondary operations for ultra-smooth bearing surfaces and critical interfaces
Programming complex geometries requires careful consideration of tool engagement angles, stepover distances, and cutting speeds to prevent chatter and achieve consistent surface quality. Our CAM specialists understand bicycle-specific design features including cable routing passages, weight-reduction cutouts, and aerodynamic shaping requirements compatible with modern bicycle designs.
Why Choose Yijin Hardware for Your CNC Bicycle Parts?
We combine specialized bicycle industry knowledge with advanced CNC machining capabilities to deliver components that exceed performance expectations and safety requirements. Our engineering team provides design optimization consultation, material selection guidance, and cost reduction strategies, helping you achieve performance goals while controlling manufacturing costs. We maintain an extensive inventory of aerospace-grade aluminum and titanium alloys, enabling rapid response to prototype and production requirements.
Our commitment to quality includes rigorous inspection procedures, certified processes, and comprehensive documentation ensuring every component meets your specifications. With decades of CNC experience and continuous investment in advanced manufacturing technology, we serve as your reliable manufacturing partner for critical bicycle components requiring precision, durability, and performance excellence.
Was unsere Kunden sagen
CNC Bicycle Parts FAQs
The frame typically represents 30-40% of a high-end bicycle’s total cost, with premium titanium or carbon fiber frames ranging from $2,000-$8,000. Frame costs reflect precision engineering, advanced materials, extensive testing, and complex manufacturing processes required for safety under extreme riding conditions. Custom bicycle parts with integrated features like internal cable routing and aerodynamic shaping add manufacturing complexity that increases price significantly.
We achieve ±0.002 inches (0.05 mm) on bottom bracket threads and bearing seats, with standard bicycle components held to ±0.005 inches (0.13 mm). Ultra-precision bearing races and threaded interfaces can be maintained to ±0.0005 inches (0.013 mm) using our advanced CNC equipment and CMM inspection capabilities. These tolerances ensure perfect component interface, reduced wear, and optimal performance throughout service life.
Prototype components require 3–7 days from design approval to completed parts, depending on complexity and material requirements. Production runs of 100-1,000 parts typically take 1–3 weeks, while larger quantities require 3–6 weeks, including secondary operations like anodizing or heat treatment. We maintain common material inventory and offer expedited processing for urgent requirements when production schedules permit.
